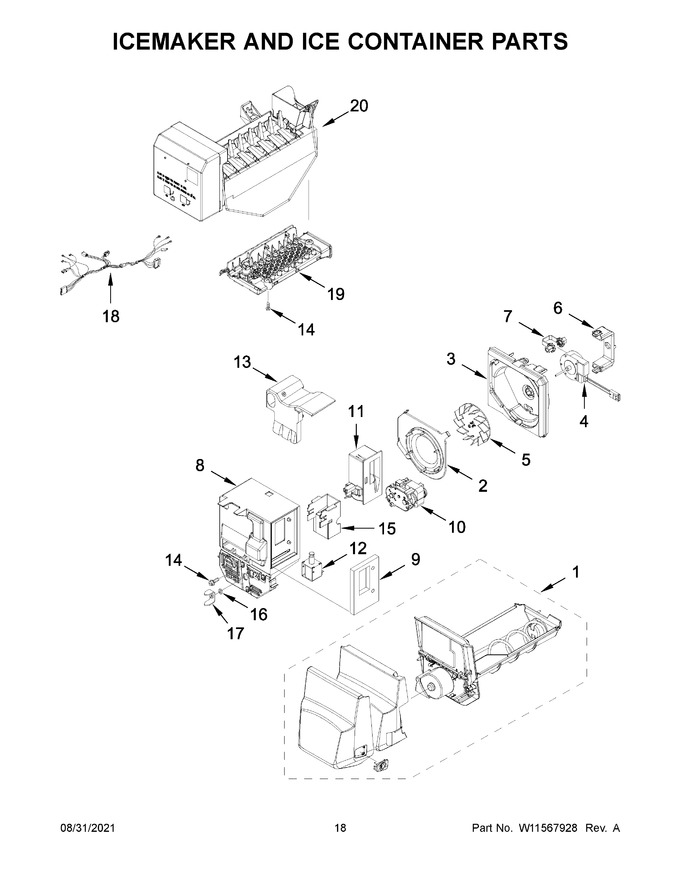

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11185686 | Assembly, Ice Bin (Replaces: W11097357) |
|
Immediately | $ 320.60 | ||||
| 2 | W10121282 | Inlet, Blower |
|
$ 17.64 | |||||
| 3 | W10309863 | Scroll, Blower |
|
$ 92.65 | |||||
| 4 | W11529245 | Motor, Fan (Replaces: W11299369) |
|
$ 213.02 | |||||
| 5 | WPW10123444K | Wheel, Blower (Replaces: W10123444) |
|
$ 92.51 | |||||
| 6 | W10165970 | Clip, Fan Motor (Replaces: 12956603) |
|
$ 89.17 | |||||
| 7 | W10151687 | Grommet, Fan Motor |
|
$ 13.73 | |||||
| 8 | WPW10309864 | Divider, Ice Box (Replaces: W10309864) |
|
Immediately | $ 127.22 | ||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 12920001) |
|
$ 8.36 | |||||
| 10 | W11671282 | Motor, Dispenser (Replaces: W10884561) |
|
Immediately | $ 110.51 | ||||
| 11 | WPW10196393 | Damper, Control (Replaces: W10196393) |
|
Immediately | $ 166.07 | ||||
| 12 | WPW10309866 | Assembly, Solenoid (Replaces: W11182941) |
|
$ 220.66 | |||||
| 13 | W11676504 | Liner, Divider (Replaces: W10118612) |
|
$ 25.44 | |||||
| 14 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 15 | W10346971 | Bracket, Solenoid |
|
$ 85.82 | |||||
| 16 | W11378860 | Washer (Replaces: W10465946) |
|
Immediately | $ 17.22 | ||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052A001) |
|
Immediately | $ 72.36 | ||||
| 18 | W11548538 | Harness, Icemaker (Replaces: W11309962) |
|
$ 136.95 | |||||
| 19 | W11548539 | Assembly, Impinger (Replaces: W11323371) |
|
$ 63.67 | |||||
| 20 | W11692161 | Assembly, Icemaker (complete) (Replaces: W11331444) |
|
Immediately | $ 303.33 |
