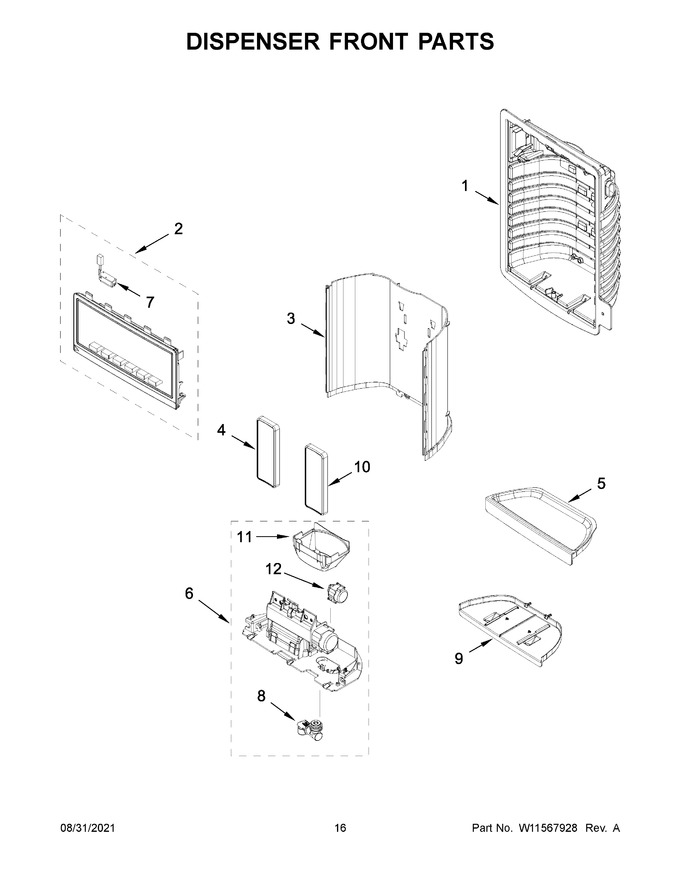

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not Serviced)		Appelez-nous	-
2	W11548537		Assembly, User Interface   (Replaces: W11459418)		Appelez-nous	-
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	WPW10368730		Assembly, Ice Pad (grey)   (Replaces: W10334801)			Immediately	$ 304.26
5	W11045970		Tray, Dispenser (white)				$ 62.79
6	WPW10353552		Assembly, Separator (includes Spigot And Ice Guide)   (Replaces: W10353552)				$ 166.29
7	W11290115		Assembly, Led   (Replaces: W10238083)				$ 80.43
8	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 129.89
9	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
10	WPW10368730		Assembly, Water Pad (grey)   (Replaces: W10334825)			Immediately	$ 304.26
11	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 22.80
12	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
10A	W10368729		Assembly, Water Pad (black)   (Replaces: W10334822)				$ 294.08
3A	W11045976		Wall, Dispenser False (black)				$ 41.12
4A	W10368729		Assembly, Ice Pad (black)   (Replaces: W10334798)				$ 294.08
5A	W11045971		Tray, Dispenser (black)				$ 62.76
9A	W10267861		Tray, Dispenser Slide (black)				$ 70.85
