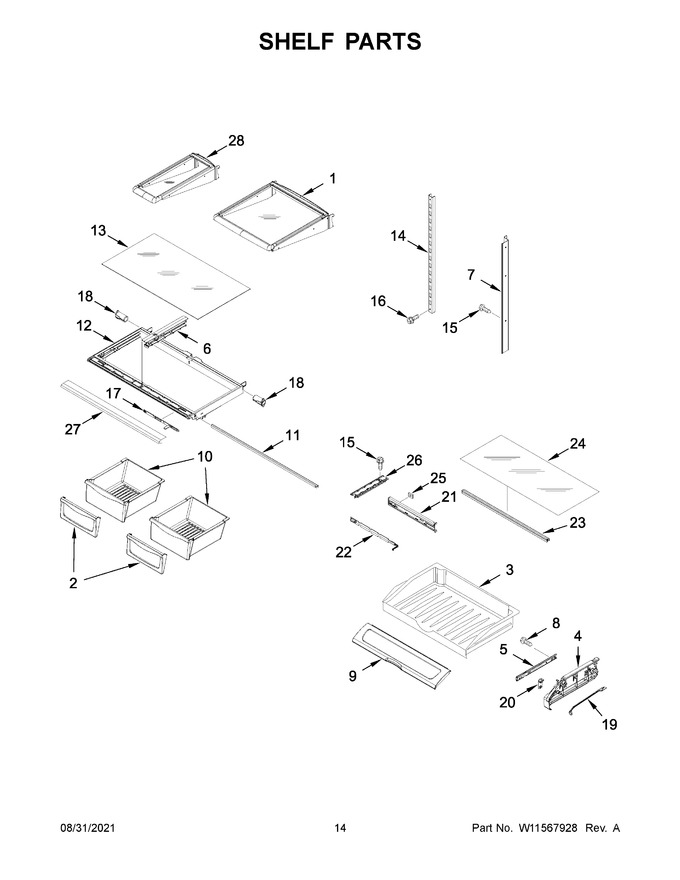

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11402525 | Shelf, Glide Out (Replaces: W11358363) |
|
$ 234.44 | |||||
| 2 | W11206718 | Frame, Crisper Pan (Replaces: 12643802SP) |
|
$ 324.43 | |||||
| 3 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 4 | W10874836 | Endcap, Pantry (left Hand) (Replaces: W10845509) |
|
Immediately | $ 38.43 | ||||
| 5 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 6 | WPW10326469 | Rail, Center Crisper (Replaces: W10326469N) |
|
Immediately | $ 33.37 | ||||
| 7 | W10251966 | Ladder, Side (left Hand) |
|
$ 80.56 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | W10827015 | Lid, Pantry (Replaces: 12656813) |
|
Immediately | $ 175.81 | ||||
| 10 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 176.72 | ||||
| 11 | WP12642303WD | Brace, Crisper Cover (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 12 | WPW10329866 | Frame, Crisper (Replaces: W10329866) |
|
$ 226.44 | |||||
| 13 | WP67006704 | Glass, Shelf (Replaces: 12204824N) |
|
$ 212.77 | |||||
| 14 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 17 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 18 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 19 | WP67003795 | Bar, Control (Replaces: 12655304) |
|
$ 8.45 | |||||
| 20 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 30.64 | |||||
| 21 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 22 | WP67003793 | Slide, Temperature Control (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 23 | W10528933 | Support, Glass (includes Pantry Brace) |
|
Immediately | $ 89.18 | ||||
| 24 | W11033333 | Glass, Shelf (Replaces: W10893772) |
|
$ 227.27 | |||||
| 25 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 26 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 27 | W10313178 | Trim, Crisper (Replaces: W10313178N) |
|
$ 65.12 | |||||
| 28 | W11197490 | Shelf, Mini Stationary (Replaces: 12885501) |
|
$ 242.05 | |||||
| 4A | W10874836 | Endcap, Pantry (right Hand) (Replaces: W10845508) |
|
Immediately | $ 38.43 | ||||
| 7A | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 |
