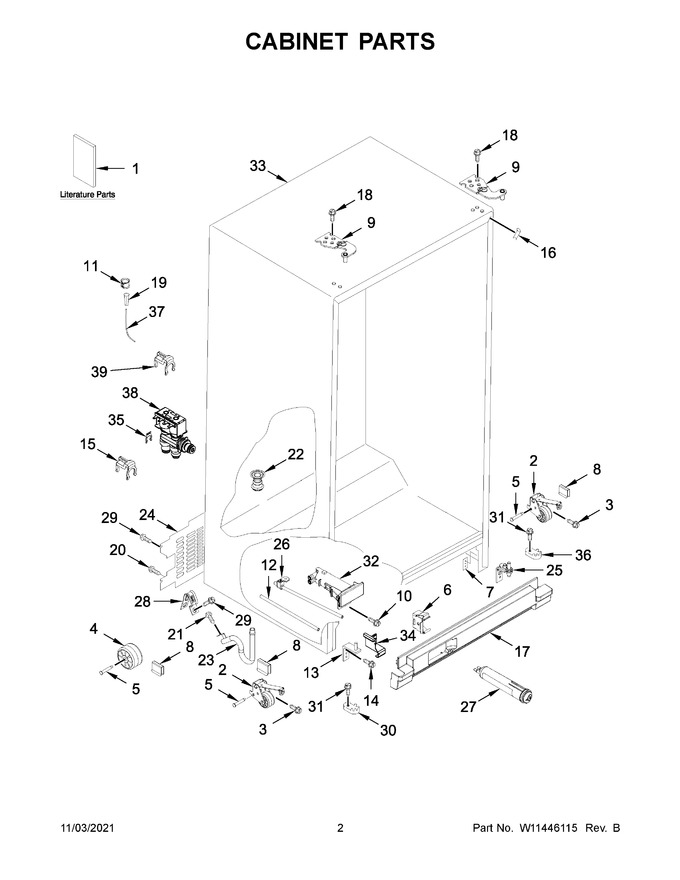

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11366704		Use And Care Guide		Appelez-nous	-
2	WPW10304660		Assembly, Roller (left Hand)   (Replaces: W10304660)			Immediately	$ 73.90
3	W11544561		Screw   (Replaces: 2152958)				$ 14.75
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: W11365774)			Immediately	$ 19.12
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	W11036715		Plate, Screw (refrigerator)		Appelez-nous	-
8	W11594405		Clip, Roller   (Replaces: W11087168)			Immediately	$ 19.12
9	W11505709		Hinge, Top (left Hand)   (Replaces: W11167022)				$ 67.52
10	WP489500		Screw   (Replaces: 489500)				$ 8.17
11	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 65.90
12	W11162036		Tube, Filter Outlet   (Replaces: W10900447)				$ 120.45
13	W11687636		Assembly, Bottom Hinge (freezer)   (Replaces: W11093938)				$ 72.89
14	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
15	W11091654		Connector, Double Lock			Immediately	$ 22.21
16	W11219639		Filler, Wrapper (white)				$ 11.88
17	W11282549		Grille (white)   (Replaces: W11226346)			Immediately	$ 128.67
18	W11579735		Screw, Hinge   (Replaces: W10290781)			Immediately	$ 14.73
19	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
20	WP488488		Screw   (Replaces: 489290)				$ 8.52
21	WP489464		Screw   (Replaces: 489464A)			Immediately	$ 8.38
22	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 53.45
23	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 36.53
24	W11613262		Cover, Unit   (Replaces: W10898351)				$ 54.75
25	W11399415		Assembly, Bottom Hinge (refrigerator - Also Includes Door Cam)   (Replaces: W11097327)				$ 73.28
26	W11162040		Tube, Filter Inlet   (Replaces: W10900449)				$ 121.20
27	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
28	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
29	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
30	W11679635		Closer, Door (freezer)   (Replaces: W11095731)			Immediately	$ 13.73
31	WP489483		Screw   (Replaces: W10142234)				$ 11.41
32	W11162041		Housing, Water Filter (white)   (Replaces: W11036340)			Immediately	$ 132.05
33	NP		Following Parts Not Illustrated		Appelez-nous	-
34	W10897565		Assembly, Bracket				$ 71.89
35	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.89
36	W11398787		Closer, Lower Cam Door (refrigerator)   (Replaces: W10905504)				$ 14.61
37	W10823511		Tube, Water   (Replaces: W10357069)			Immediately	$ 32.41
38	WPW10179146		Assembly, Filter Valve   (Replaces: W10179146)			Immediately	$ 99.47
39	W11252188		Double Lock Ring (1/4)				$ 20.85
16A	W11219641		Filler, Wrapper (black)				$ 11.88
16B	W11219640		Filler, Wrapper (biscuit)		Appelez-nous	-
16C	W11219642		Filler, Wrapper (grey)			Immediately	$ 12.85
17A	W11282556		Grille (black)   (Replaces: W11226347)				$ 127.68
17B	W11282547		Grille (biscuit)   (Replaces: W11226344)		Appelez-nous	-
17C	W11282548		Grille (grey)   (Replaces: W11226345)				$ 127.85
1A	W11248697		Tech Sheet		Appelez-nous	-
1B	W11239605		Energy Guide		Appelez-nous	-
2A	WPW10304659		Assembly, Roller (right Hand)   (Replaces: W10304659)			Immediately	$ 68.52
32A	W11172791		Housing, Water Filter (black)   (Replaces: W11036341)			Immediately	$ 220.12
32B	W11036339		Housing, Water Filter (biscuit)		Appelez-nous	-
32C	W11162042		Housing, Water Filter (grey)   (Replaces: W11036338)			Immediately	$ 149.82
35A	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.90
7A	W10904380		Plate, Screw (freezer)				$ 25.96
9A	W11505710		Hinge, Top (right Hand)   (Replaces: W11167023)				$ 67.52
