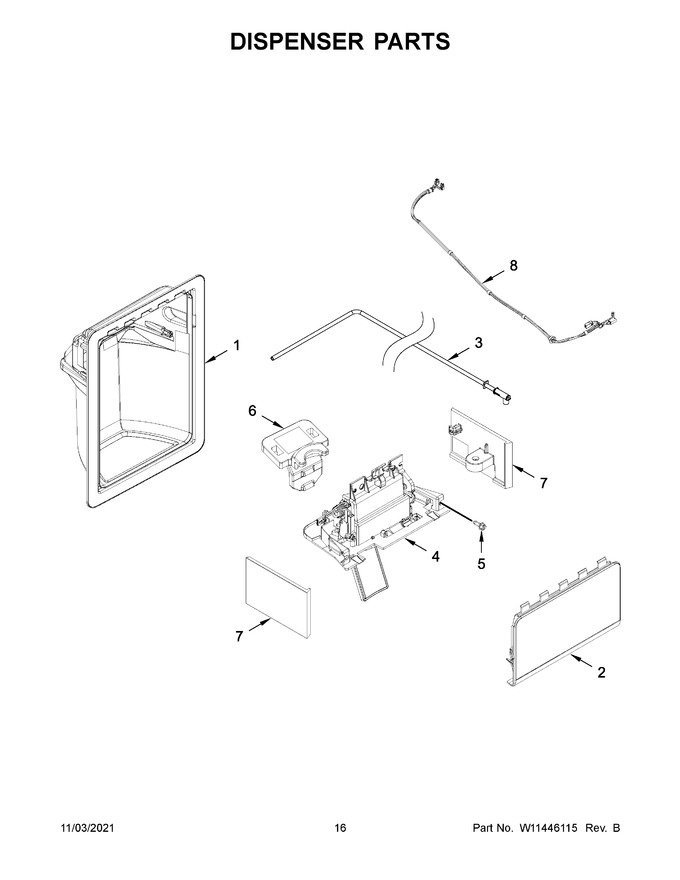

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W11203289		Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10898320)		Appelez-nous	-
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 166.06
4	W11678841		Assembly, Separator (white)   (Replaces: W11231390)		Appelez-nous	-
5	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
6	W11397167		Retainer, Separator Hose   (Replaces: W11039857)			Immediately	$ 23.34
7	W11311797		Cover, Dispenser Front (white (left Hand))   (Replaces: W11183318)		Appelez-nous	-
8	W10898319		Harness, Wire				$ 150.84
4A	W11678840		Assembly, Separator (black)   (Replaces: W11231389)				$ 191.13
4B	W11423786		Assembly, Separator (biscuit)   (Replaces: W11231387)		Appelez-nous	-
4C	W11678839		Assembly, Separator (neptune Frost)   (Replaces: W11231388)				$ 178.37
7A	W11311798		Cover, Dispenser Front (white (right Hand))   (Replaces: W11183314)		Appelez-nous	-
7B	W11311799		Cover, Dispenser Front (black (left Hand))   (Replaces: W11183317)				$ 102.72
7C	W11311800		Cover, Dispenser Front (black (right Hand))   (Replaces: W11183313)			Immediately	$ 106.31
7D	W11311903		Cover, Dispenser Front (biscuit (left Hand))   (Replaces: W11183316)		Appelez-nous	-
7E	W11311905		Cover, Dispenser Front (biscuit (right Hand))   (Replaces: W11183312)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
