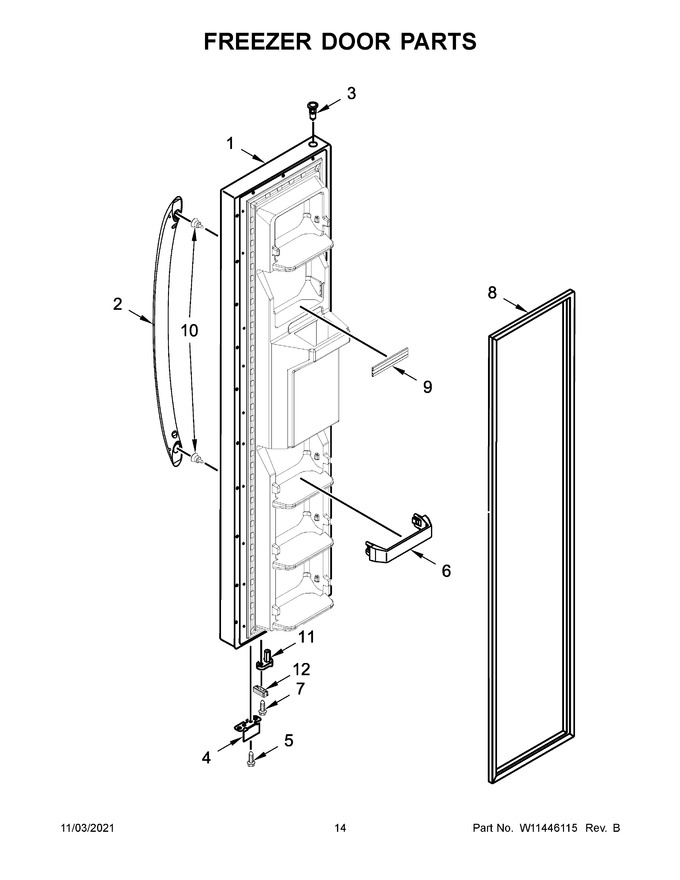

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11025546		Door, Freezer (includes Door Gasket) (white)   (Replaces: W11025546)		Appelez-nous	-
2	W11432251		Handle (white)   (Replaces: W11289637)				$ 180.69
3	WP2182181		Thimble   (Replaces: 2200087)				$ 7.76
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 17.78
5	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 55.85
7	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
8	2159072		Gasket, Door (beige)   (Replaces: W10911494)				$ 308.19
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 23.11
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
11	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 13.35
12	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.22
12A	W10407187		Bumper, Door (black)				$ 46.04
12B	W10407203		Bumper, Door (biscuit)		Appelez-nous	-
12C	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 22.24
1A	LW11025545		Door, Freezer (includes Door Gasket) (black)   (Replaces: W11025545)		Appelez-nous	-
1B	LW11025547		Door, Freezer (includes Door Gasket) (biscuit)   (Replaces: W11025547)		Appelez-nous	-
1C	LW11258439		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W11258439)		Appelez-nous	-
2A	W11450221		Handle (black)   (Replaces: W11289638)				$ 180.62
2B	W11423779		Handle (biscuit)   (Replaces: W11289636)		Appelez-nous	-
2C	W11163764		Handle (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
8A	2159080		Gasket, Door (black)   (Replaces: W10911504)				$ 310.39
8B	W10136733		Gasket, Door (grey)   (Replaces: W10911461)				$ 341.89
