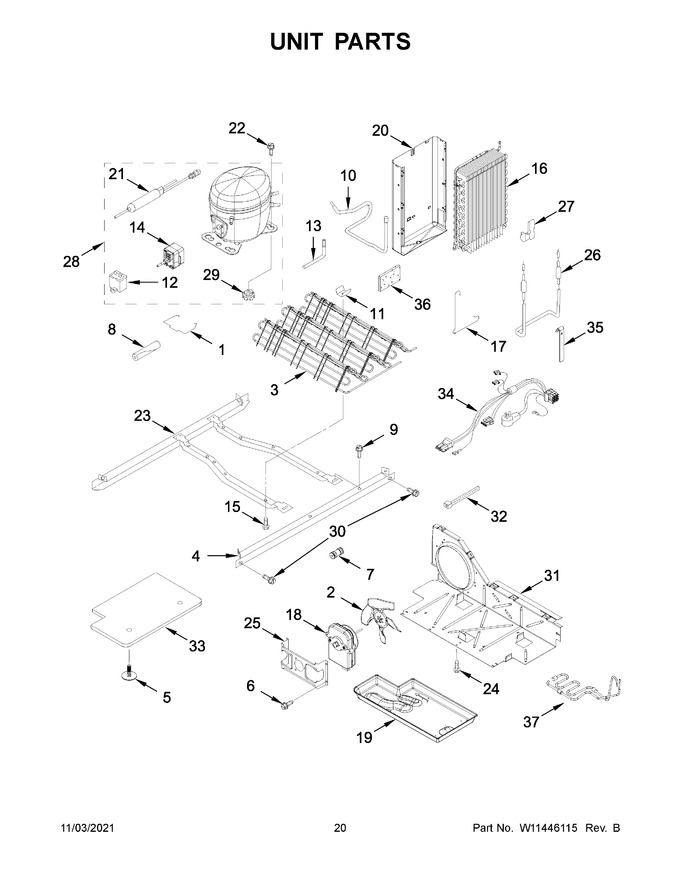

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.30 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | W11632924 | Assembly, Condenser (Replaces: W10904626) |
|
Immediately | $ 226.24 | ||||
| 4 | W10905882 | Rail, Unit Mounting |
|
$ 117.48 | |||||
| 5 | 489396 | Clip |
|
$ 10.72 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 10 | W11164682 | Tube, Suction |
|
$ 61.85 | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 18.46 | |||||
| 12 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 13 | W11676464 | Tube, Process (Replaces: W11239207) |
|
$ 103.44 | |||||
| 14 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 339.85 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W10522629) |
|
Immediately | $ 71.42 | ||||
| 19 | W11164129 | Tray, Evaporator (Replaces: W10897557) |
|
$ 150.27 | |||||
| 20 | WPW10194474 | Assembly, Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 119.53 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 13.40 | |||||
| 23 | W10905880 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
$ 131.22 | |||||
| 24 | WP489464 | Screw (Replaces: 489464A) |
|
Immediately | $ 7.83 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 159.36 | ||||
| 27 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 28 | W10233960 | Compressor (Replaces: W10879296) |
|
Immediately | $ 513.66 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Baffle, Air (Replaces: W10897567) |
|
$ 96.38 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 33 | W10905940 | Assembly, Unit Cover (bottom) |
|
- | |||||
| 34 | W11580023 | Assembly, Unit Wire (includes Power Cord) (Replaces: W11218404) |
|
$ 75.25 | |||||
| 35 | W11611126 | Probe, Heat (Replaces: W10895163) |
|
$ 22.06 | |||||
| 36 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 37 | W11678305 | Assembly, Precooler Formed (Replaces: W11189542) |
|
$ 63.46 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 128.09 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 |
