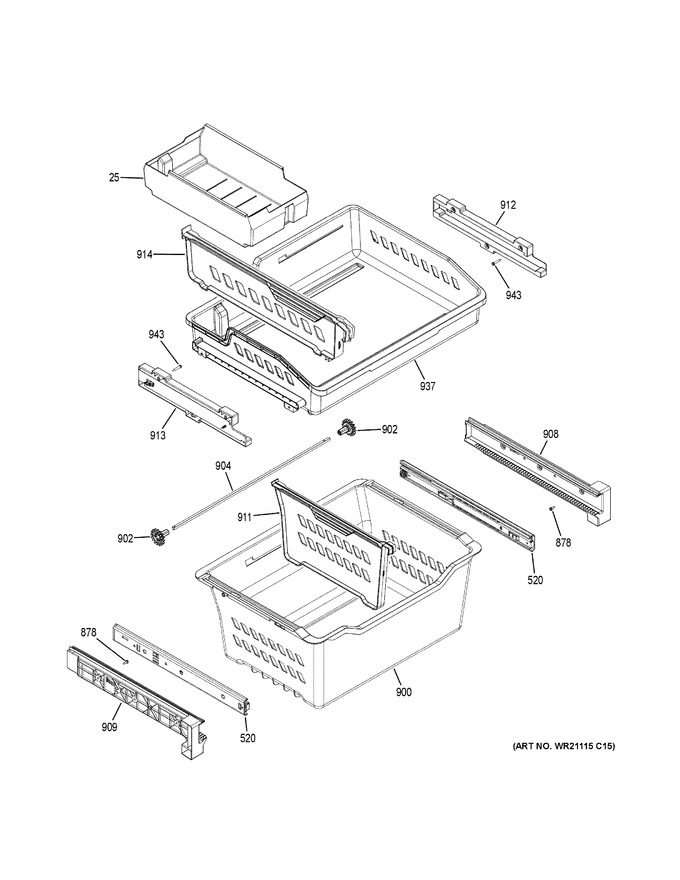

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	WR30X30260		Freezer Ice Bucket		Appelez-nous	-
520	WR72X24815		Slide Basket Lower Fz		Appelez-nous	-
878	WR01A00634		Scr 10-14 Pl Flt20 3/4 S   (Replaces: WR01X10939)				$ 3.97
900	WR71X30122		Freezer Lower Basket		Appelez-nous	-
902	WR01F00845		Gear Pinion   (Replaces: WR02X13387)			Immediately	$ 10.12
904	WR02X32247		Cross Bar Pinion		Appelez-nous	-
908	WR72X24767		Holder Slide Fz Rh		Appelez-nous	-
909	WR72X24768		Holder Slide Fz Lh		Appelez-nous	-
911	WR02X24849		Divider Basket Lower Fz		Appelez-nous	-
912	WR72X24868		Slide Basket Upper Rh		Appelez-nous	-
913	WR72X24869		Slide Basket Upper Lh		Appelez-nous	-
914	WR02X27906		Divider		Appelez-nous	-
937	WR71X30132		Freezer Upper Basket		Appelez-nous	-
943	WR01X25308		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
