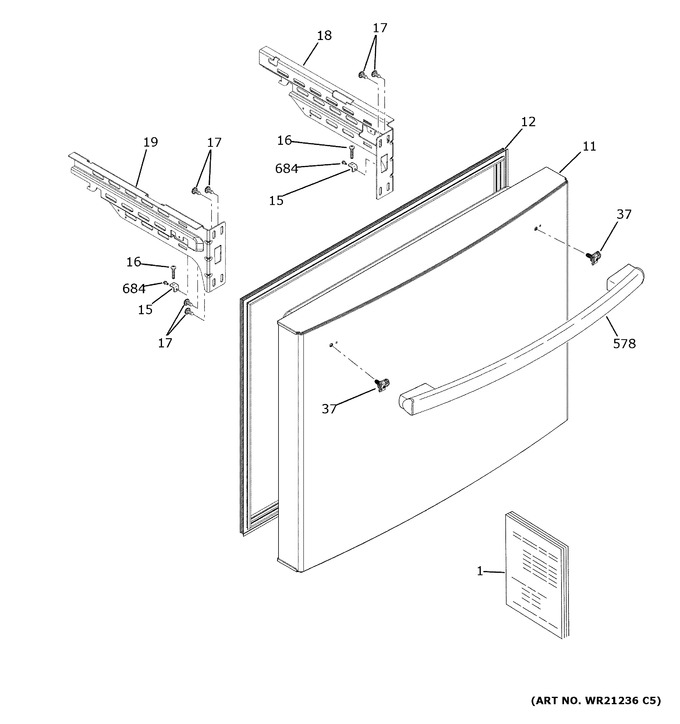

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000534		Pm Mini Manual And Wiring		Appelez-nous	-
1	49-1000622		Pm Quick Owners Manual		Appelez-nous	-
11	WR78X30450		Refrigerator - Freezer Door White		Appelez-nous	-
12	WR14X30451		Gasket Door Fz Ww		Appelez-nous	-
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
17	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
18	WR72X30559		Bracket Drawer		Appelez-nous	-
19	WR72X30560		Bracket Drawer		Appelez-nous	-
37	WR01X39781		Fastener			Immediately	$ 27.25
578	WR12X34316		White Freezer Door Handle		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
