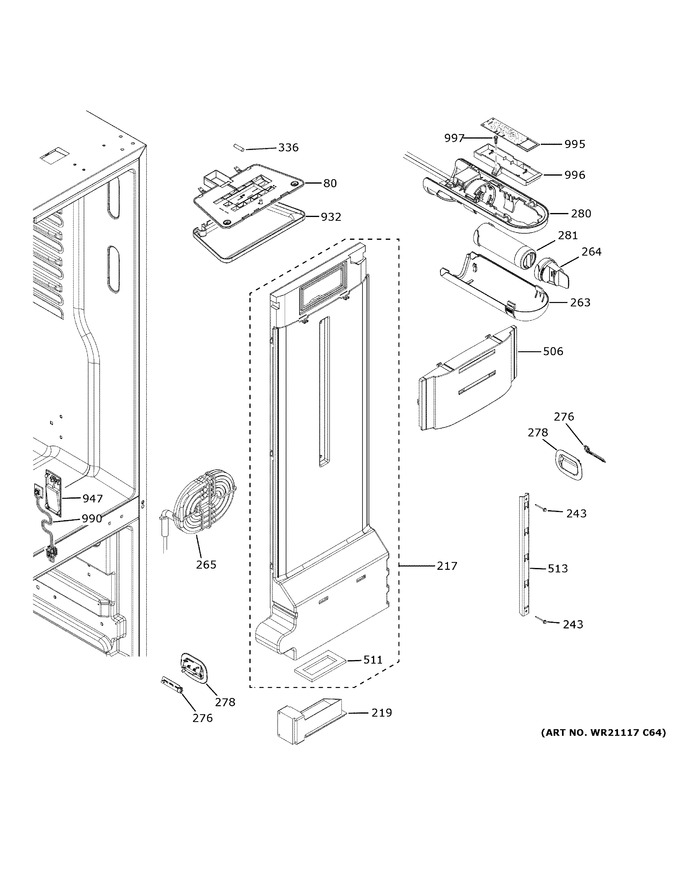

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
80	WR55X30124		Light Housing		Appelez-nous	-
217	WR14X25128		Duct Air Tower Ff Asm		Appelez-nous	-
219	WR60X27396		Damper Asm		Appelez-nous	-
243	WR01X10626		Scr 8-18 Ab Hxw 5/4 S		Appelez-nous	-
263	WR17X34686		Xwfe Filter Cover		Appelez-nous	-
264	WR01A02371		Bypass Filter Plug   (Replaces: WR17X33825)			Immediately	$ 86.32
265	WR17X25212		Tank Cold Water		Appelez-nous	-
276	WR55X24870		Board Led Light Asm		Appelez-nous	-
278	WR02X38285		Shield Light		Appelez-nous	-
280	WR14X34687		Xwfe Manifold & Housing		Appelez-nous	-
281	WR01F04788		Xwfe Retail Filter   (Replaces: XWFE)			Immediately	$ 86.34
336	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 15.72
506	WR14X29199		Fresh Food Air Tower Grill		Appelez-nous	-
511	WR14X24747		Gasket Tower Ff		Appelez-nous	-
513	WR14X26167		Track Center Asm		Appelez-nous	-
932	WR13X38305		Top Led Cover		Appelez-nous	-
947	WR17X25225		Dispenser Internal Asm		Appelez-nous	-
990	WR55X39626		Switch Actuator		Appelez-nous	-
995	WR55X35485		Pcb Nextgen Rfid		Appelez-nous	-
996	WR02X35925		Rfid Cover & Fcc Label		Appelez-nous	-
997	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
