Diagram # Part Number Description Series Availability Ships Price Add to Cart
33 WR78X30449 Door Foam Ff Asm Lh Ww Appelez-nous -
35 WR14X30448 Gasket Door French White Appelez-nous -
37 WR01X39781 Fastener In-Stock Immediately $ 27.25

38 WR02X24874 Stop Door Appelez-nous -
41 WR02X24875 Hinge Bushing Bb Appelez-nous -
43 WR02X25611 Cam Closure Ww Appelez-nous -
66 WR17X25613 Articulating Mullion Asm Ww Appelez-nous -
238 WR01X10065 Screw 8-18 Ba Por 5/8 Ss Appelez-nous -
535 WR02X24999 Hinge Bushing Bb Appelez-nous -
579 WR12X34315 White Door Handle Appelez-nous -
581 WR71X38307 Fresh Food Door Shelf Module Appelez-nous -
584 WR71X38309 Fresh Food Door Lower Bin Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

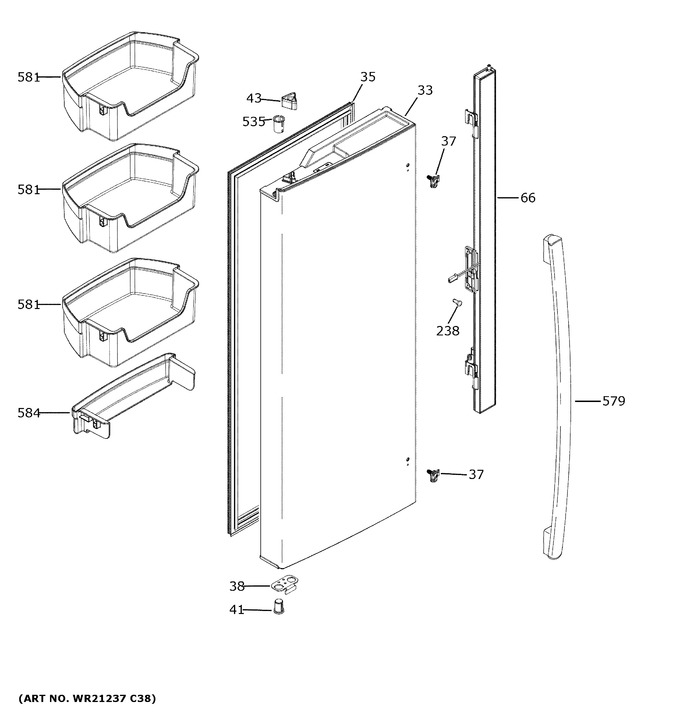

Diagram for GNE27JGMWFWW
