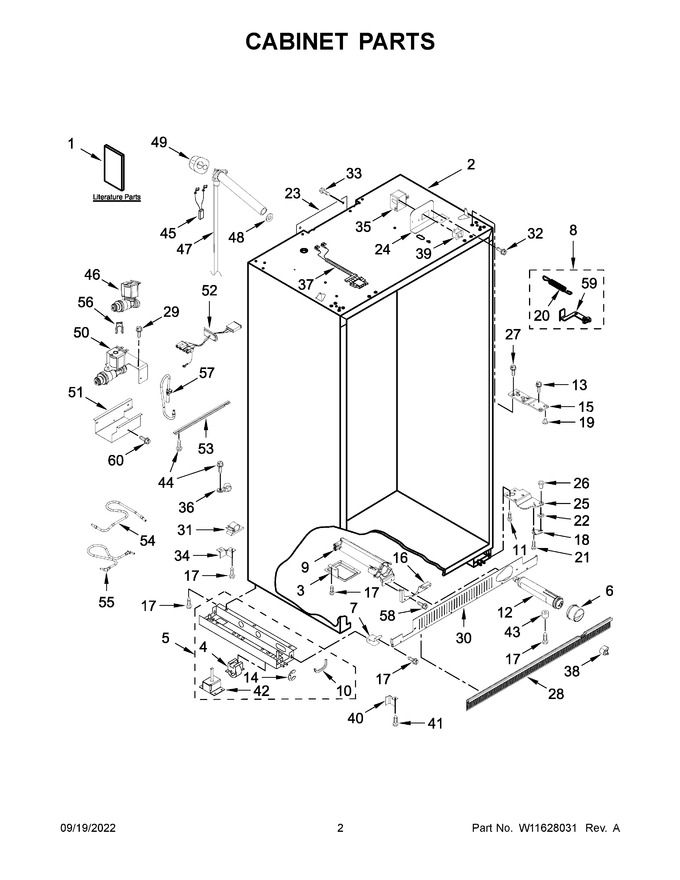

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner And Control Parts


05 - Freezer Liner And Icemaker Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11504344		Owner's Manual		Appelez-nous	-
2	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860229		Assembly, Support Base (left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W10121047		Assembly, Light Switch Cam (left Hand)				$ 89.12
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	W10754687		Filter, Water		Appelez-nous	-
13	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
14	2006841		Ring, Retainer				$ 92.66
15	2252291		Hinge, Top (left Hand)				$ 79.35
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
20	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11610480		Bracket, Switch (left Hand)				$ 76.49
25	2309472		Hinge, Bottom (freezer Side)		Appelez-nous	-
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 14.78
28	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 249.29
29	00487294		Screw   (Replaces: 487294)				$ 175.09
30	W11739148		Grille, Bottom (black)   (Replaces: W10182718)				$ 214.59
31	W10663352		Clip				$ 21.91
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11533762)		Appelez-nous	-
36	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
37	W10780213		Assembly, Switch Wire				$ 130.91
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11396033		Switch, Rocker   (Replaces: W10847848)			Immediately	$ 37.30
40	2006616		Bracket, Support Base (front) (left Hand)				$ 91.53
41	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
42	2005032		Leveler, Adjustable			Immediately	$ 200.07
43	2005433		Spacer				$ 23.33
44	W11624204		Screw   (Replaces: 486194)				$ 14.72
45	W11623284		Heater, Fill Tube   (Replaces: W11489776)		Appelez-nous	-
46	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
47	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
48	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
49	W11490590		Cover, Fill Tube		Appelez-nous	-
50	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 120.60
51	W10619291		Shield, Valve Electrical		Appelez-nous	-
52	W11479397		Assembly, Water Valve Wire				$ 78.74
53	2320559		Support, Valve				$ 88.79
54	W10619899		Tube, Filter Inlet				$ 46.24
55	W10635851		Tube, Filter Outlet				$ 88.57
56	W10782423		Locking Ring (1/4")				$ 24.37
57	W11690636		Line, Water   (Replaces: W10577944)				$ 130.54
58	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
59	W11416733		Arm, Door Closer Extension (left Hand)   (Replaces: 2267193)				$ 80.42
60	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15A	2252292		Hinge, Top (right Hand)				$ 88.79
1A	W11549876		Energy Guide		Appelez-nous	-
1B	W11494194		Tech Sheet		Appelez-nous	-
24A	W11610479		Bracket, Switch (right Hand)		Appelez-nous	-
25A	2309471		Hinge, Bottom (refrigerator Side)				$ 129.90
39A	W11291138		Switch, Rocker (freezer)   (Replaces: W10847852)			Immediately	$ 36.67
40A	2006556		Bracket, Support Base (front) (right Hand)				$ 37.20
56A	W10782424		Locking Ring (5/16)		Appelez-nous	-
59A	W11418227		Arm, Door Closer Extension (right Hand)   (Replaces: 2267192)				$ 119.09
5A	W10860448		Assembly, Support Base (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
8A	2324874		Assembly, Light Switch Cam (right Hand)				$ 108.26
