Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11173663 Trim, Side (aluminum)   (Replaces: W10568005) Special Order $ 265.20

2 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

3 WPW10121451 Insert, Blind Threaded   (Replaces: W10121451) In-Stock Immediately $ 8.03

4 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

5 2313962S Trim, Top Cabinet (aluminum) Special Order $ 256.13

6 W11173662 Trim, Side (aluminum)   (Replaces: W10568007) In-Stock Immediately $ 264.96


    View Diagram in Separate Window     Print Icon   Print Part List

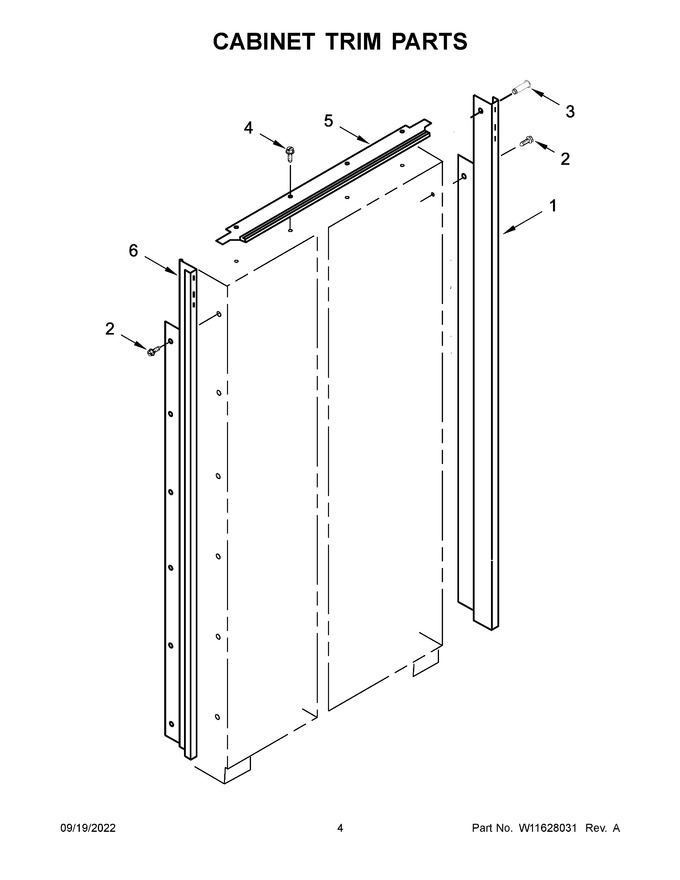

Diagram for KBSN708MPA00
