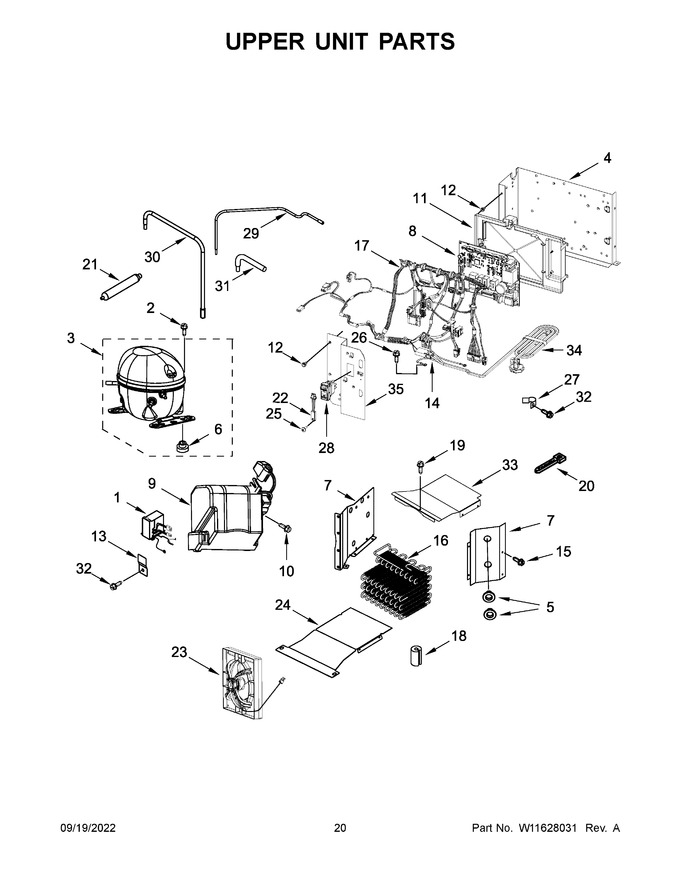

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11623097 | Assembly, Inverter Box (Replaces: W11411269) |
|
Immediately | $ 337.94 | ||||
| 2 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 3 | W11557671 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 4 | W10550831 | Housing, Control Board Mounting |
|
- | |||||
| 5 | W10587113 | Grommet |
|
- | |||||
| 6 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 7 | W11756945 | Support, Condenser (left Hand) (Replaces: W11443116) |
|
- | |||||
| 8 | W11752962 | Control, Electronic (Replaces: W11619404) |
|
Immediately | $ 376.71 | ||||
| 9 | W11247667 | Assembly, Compressor Cover (Replaces: W11235263) |
|
$ 115.24 | |||||
| 10 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 11 | W11623130 | Housing, Control Board (Replaces: W11435369) |
|
- | |||||
| 12 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 13 | 2256328 | Bracket, Inverter Mounting |
|
- | |||||
| 14 | 2310195 | Assembly, Jumper Wire (power Switch To Power Cord) |
|
$ 123.20 | |||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 16 | W11408149 | Condenser (also Order The Following Lokring Parts) |
|
Immediately | $ 233.89 | ||||
| 17 | W11585870 | Assembly, Unit Wire |
|
$ 196.11 | |||||
| 18 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 20 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11627456 | Sensor, Relative Humidity (Replaces: W11482040) |
|
$ 92.93 | |||||
| 23 | W11623099 | Assembly, Condenser Fan (Replaces: W11464545) |
|
$ 146.65 | |||||
| 24 | W11756954 | Bracket, Condenser Bottom (Replaces: W11443119) |
|
- | |||||
| 25 | W10068580 | Screw |
|
- | |||||
| 26 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 27 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 28 | W11623128 | Switch, Power Disconnect (Replaces: W11311927) |
|
$ 125.83 | |||||
| 29 | W11460409 | Tube, Heat Loop Transition |
|
$ 71.70 | |||||
| 30 | W11411473 | Tube, Drier Transition |
|
$ 71.73 | |||||
| 31 | W11482820 | Tube, Process |
|
Immediately | $ 36.53 | ||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 33 | W11756951 | Cover, Condenser Support (Replaces: W11443120) |
|
- | |||||
| 34 | 2310196 | Cord, Power |
|
Immediately | $ 88.52 | ||||
| 35 | W11435371 | Bracket, Control Assembly |
|
- | |||||
| 16A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 28.92 | ||||
| 16B | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 28.92 | ||||
| 21A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 28.92 | ||||
| 21B | W11504432 | 6/5 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 25.88 | ||||
| 3A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 3B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 3C | W11504416 | 8.5/6 Nr Ms 00 (process Tube To Compressor) |
|
Immediately | $ 27.51 | ||||
| 7A | W11756946 | Support, Condenser (right Hand) (Replaces: W11443117) |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
