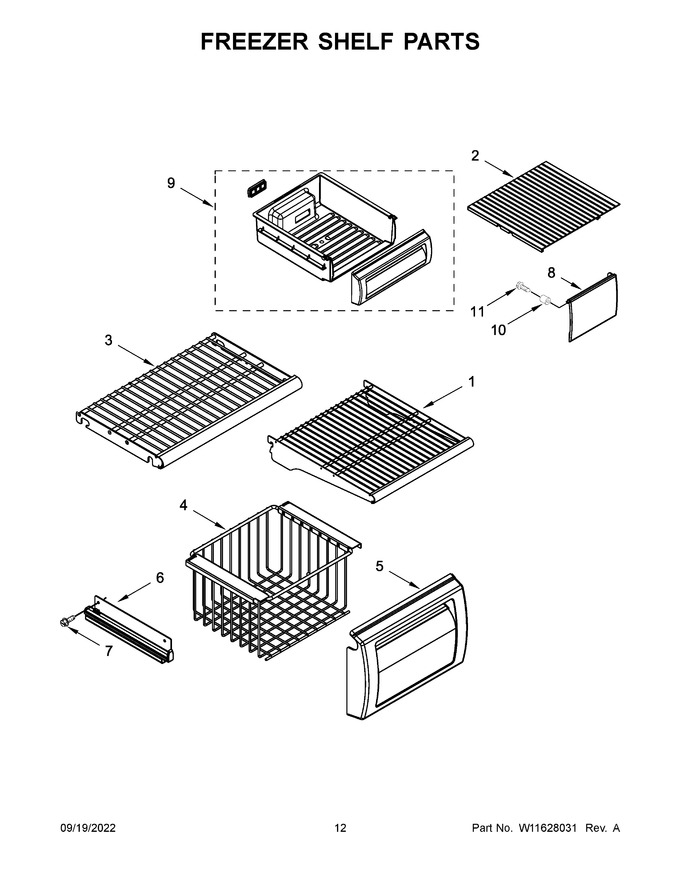

07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11602367		Shelf, Wire				$ 189.58
2	W11568089		Shelf				$ 303.56
3	W11603230		Shelf, Fixed		Appelez-nous	-
4	W11602366		Basket, Freezer		Appelez-nous	-
5	W11627455		Front, Freezer Basket   (Replaces: W11410135)		Appelez-nous	-
6	WP2259318		Slide, Basket (left Hand)   (Replaces: 2259318)			Immediately	$ 317.35
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
8	W11567134		Door, Ice				$ 75.31
9	W11631680		Assembly, Ice Bucket   (Replaces: W11410839)		Appelez-nous	-
10	W10785704		Spacer, Ice Door   (Replaces: W11445123)				$ 14.52
11	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
6A	2259317		Slide, Basket (right Hand)				$ 233.29
