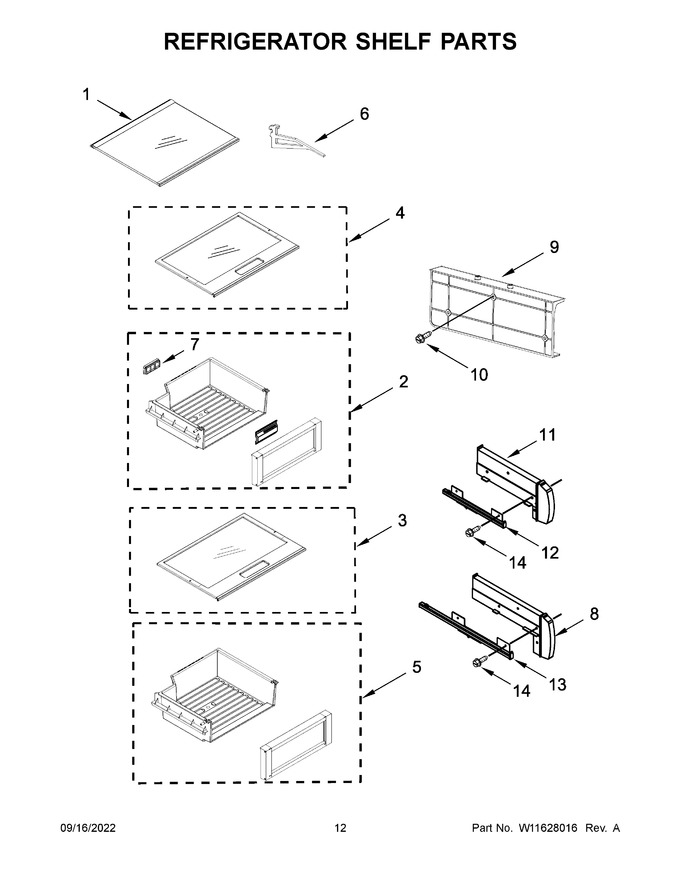

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777984		Assembly, Shelf   (Replaces: W10187535)				$ 214.92
2	W11623363		Assembly, Crisper Pan   (Replaces: W11448308)		Appelez-nous	-
3	W11626006		Assembly, Meat Pan Cover   (Replaces: W11527867)		Appelez-nous	-
4	W11634219		Assembly, Crisper Cover   (Replaces: W11527871)			Immediately	$ 328.66
5	W11626007		Assembly, Meat Pan   (Replaces: W11450936)				$ 404.17
6	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
7	2307810		Duct, Deli Pan		Appelez-nous	-
8	W11451491		Spacer, Crisper		Appelez-nous	-
9	W11451492		Spacer, Shelf Ls		Appelez-nous	-
10	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
11	W11451493		Spacer, Meat		Appelez-nous	-
12	W10844011		Slide, Meat Pan (left Hand)				$ 320.20
13	W10844010		Slide, Crisper (left Hand)			Immediately	$ 343.11
14	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
12A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 342.94
13A	W10732303		Slide, Crisper (right Hand)			Immediately	$ 343.11

    View Diagram in Separate Window       Print Part List
