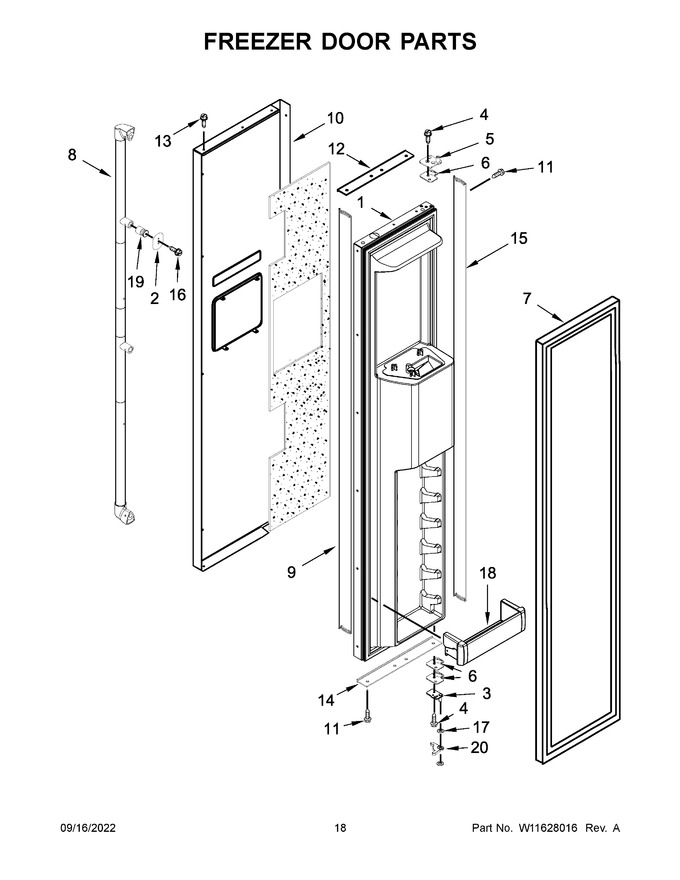

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832391		Door, Freezer   (Replaces: W11502203)				$ 1,085.45
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Assembly, Hinge (top)   (Replaces: W11414335)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W10800809		Gasket, Door (black)   (Replaces: W10764833)			Immediately	$ 351.03
8	W11358123		Handle, Door (stainless)		Appelez-nous	-
9	W10758377		Spacer, Handle Side Door				$ 109.79
10	W11633383		Skin, Door Filler (not Serviced-included With Skin)   (Replaces: W11441141)				$ 1,484.85
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
12	W10758115		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10758142		Spacer, Door Skin (bottom)				$ 55.47
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W11450392		Bin, Fc Shallow Door				$ 402.26
19	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 12.80
20	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
