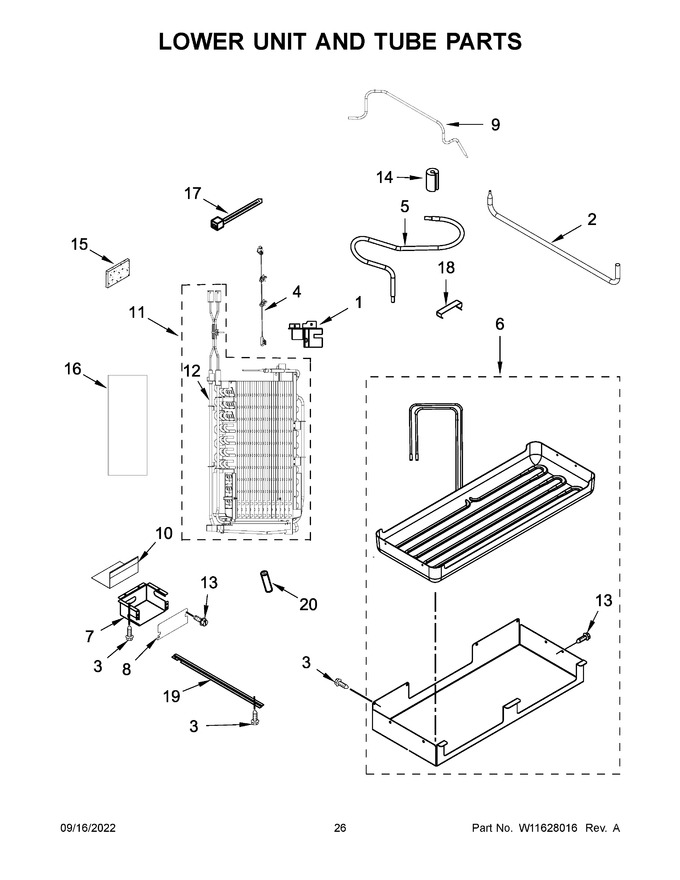

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756943		Bracket, Evaporator Right Top   (Replaces: W11463140)		Appelez-nous	-
2	W11530767		Tube, Transition (drier/restrictor)		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	W11629268		Thermistor, Evaporator   (Replaces: W11549269)			Immediately	$ 34.51
5	W11444578		Tube, Oil Trap Suction		Appelez-nous	-
6	W11623101		Assembly, Drain Pan   (Replaces: W11491712)			Immediately	$ 394.02
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
9	W11445483		Tube, Discharge		Appelez-nous	-
10	W10321050		Shelf, Wiring Cover		Appelez-nous	-
11	W11629713		Assembly, Evaporator And Heater (also Order The Following Lokring Parts)   (Replaces: W11408050)			Immediately	$ 398.63
12	W11267071		Heater, Defrost				$ 224.29
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	W11715935		Grommet, Air Return   (Replaces: W10413009)				$ 13.58
15	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
16	W11448419		Gasket, Fc Evaporator Bypass		Appelez-nous	-
17	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
18	W10169509		Clip, Heat Exchanger		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 13.21
11A	W11504450		4/1.8 Nr Ms 00 (capillary Tube To Evaporator)			Immediately	$ 46.52
11B	W11506620		8 Nk Al 00 (suction Line To Evaporator)			Immediately	$ 32.10
