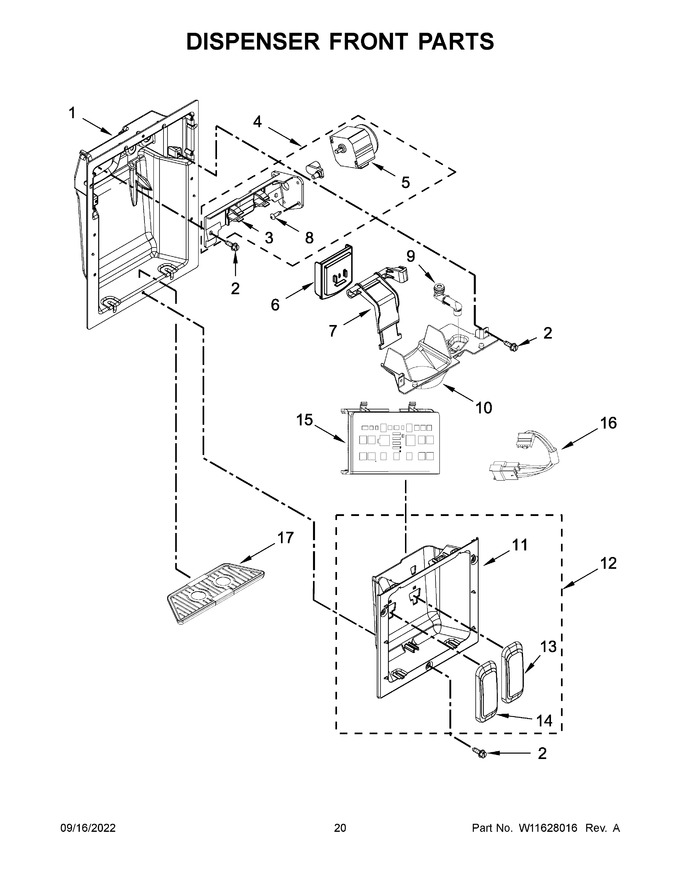

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 3 | W10542660 | Bracket, Motor |
|
Immediately | $ 93.26 | ||||
| 4 | WPW10546285 | Assembly, Motor And Bracket (Replaces: W10546285) |
|
Immediately | $ 104.97 | ||||
| 5 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 6 | WPW10504458 | Door, Ice (Replaces: W10504458) |
|
Immediately | $ 25.40 | ||||
| 7 | W10542663 | Support, Ice Door |
|
Immediately | $ 84.71 | ||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
$ 147.07 | |||||
| 10 | W11649219 | Assembly, Separator (Replaces: W11425798) |
|
$ 57.95 | |||||
| 11 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 12 | W11634220 | Housing, Pad Assembly (Replaces: W11429558) |
|
$ 934.29 | |||||
| 13 | W11629729 | Assembly, Water Paddle (Replaces: W11408131) |
|
$ 69.18 | |||||
| 14 | W11629728 | Assembly, Ice Paddle (Replaces: W11408130) |
|
- | |||||
| 15 | W11626108 | Assembly, User Interface (Replaces: W11426691) |
|
$ 353.29 | |||||
| 16 | W11629730 | Wire, User Interface Jumper (Replaces: W11428836) |
|
Immediately | $ 26.89 | ||||
| 17 | W11630205 | Assembly, Drip Tray (gray) (Replaces: W11408076) |
|
$ 91.60 |
