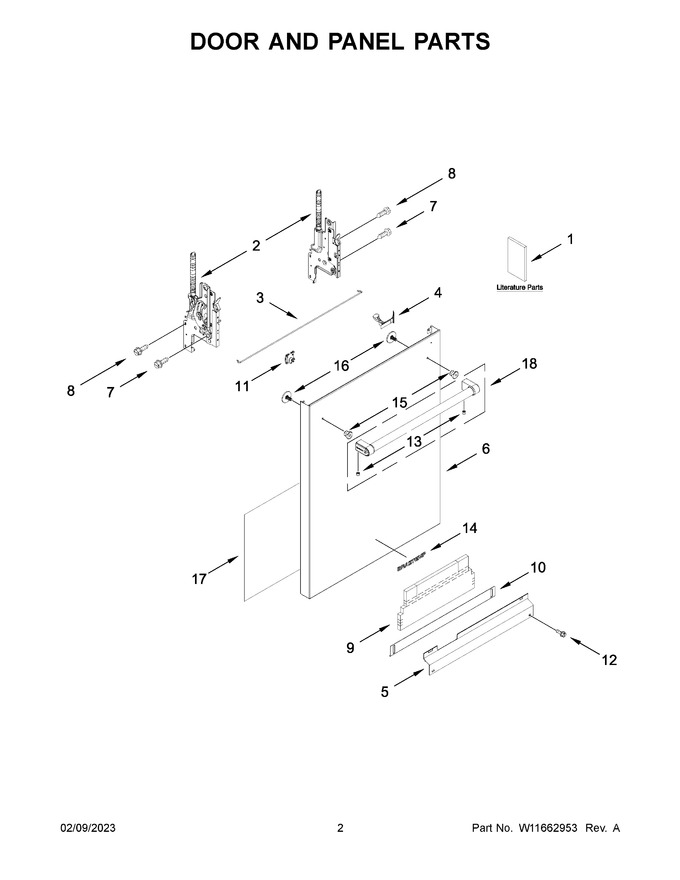

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11481436		Owners Manual		Appelez-nous	-
2	W11766666		Arm, Hinge (left Hand)   (Replaces: W10920232)			Immediately	$ 53.55
3	W11377160		Cross Brace, Door				$ 31.77
4	W11102920		Light Pipe				$ 64.92
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11505424		Panel, Front (includes 4,11 & 14) (stainless)   (Replaces: W11434452)		Appelez-nous	-
7	W11676450		Screw   (Replaces: 3400000)				$ 14.06
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 73.20
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 15.25
12	W11551775		Screw, Black   (Replaces: W11438978)			Immediately	$ 15.43
13	W10917698		Set Screw   (Replaces: W10687133)			Immediately	$ 7.19
14	W11323895		Badge		Appelez-nous	-
15	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.45
16	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.19
17	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 22.21
18	W11438786		Handle (stainless)				$ 207.39
2A	W11766665		Arm, Hinge (right Hand)   (Replaces: W10920230)			Immediately	$ 53.55
