Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11672788 Dishrack, Upper   (Replaces: W10847876) In-Stock Immediately $ 171.03

2 W11561204 Track, Dishrack   (Replaces: W11441109) In-Stock Immediately $ 36.06

3 W11580020 Clip, Adjuster Arm   (Replaces: W11180605) In-Stock Immediately $ 59.67

4 W11579392 Track Stop, Rear   (Replaces: W11084872) In-Stock Immediately $ 19.44

5 W11545307 Track Stop, Front   (Replaces: W11084874) In-Stock Immediately $ 15.45

6 W11268091 Rack Adjuster (left Hand) Appelez-nous -
7 W11806546 Tine Row, Fold Down   (Replaces: W11186528) In-Stock Immediately $ 65.40

8 W11179755 Positioner Special Order $ 22.02

9 W11627535 Clip, Pivot   (Replaces: W11179753) Special Order $ 25.22

10 W11180178 Leveler, Adjuster Arm Special Order $ 72.53

11 W11267700 Button, Adjuster Arm Appelez-nous -
12 W11545296 Wheel   (Replaces: W11048221) In-Stock Immediately $ 14.14

13 W11708397 Screw   (Replaces: W11376395) Appelez-nous -
6A W11268087 Rack Adjuster (right Hand) Appelez-nous -

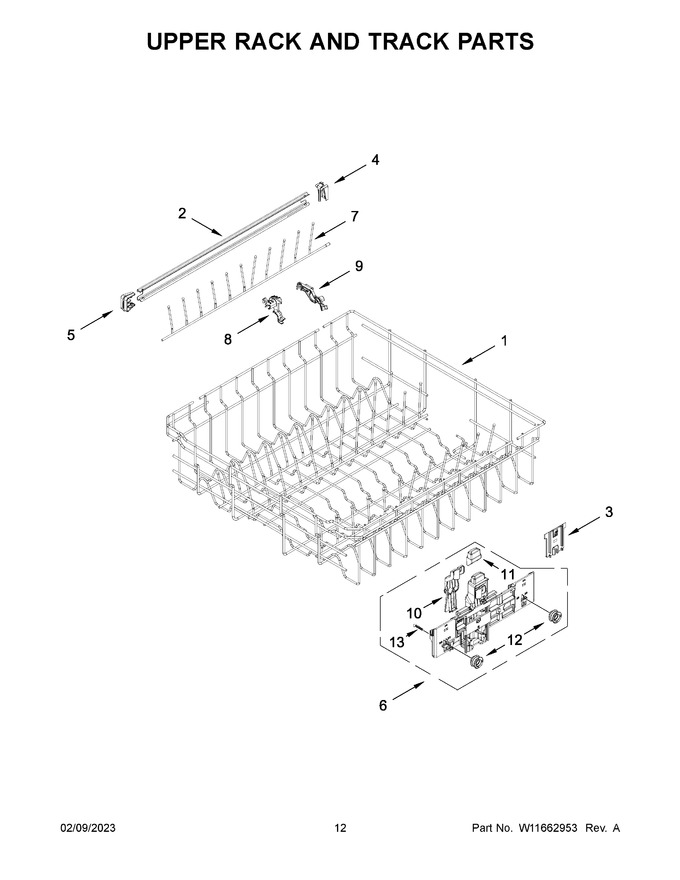

    View Diagram in Separate Window     Print Icon   Print Part List
