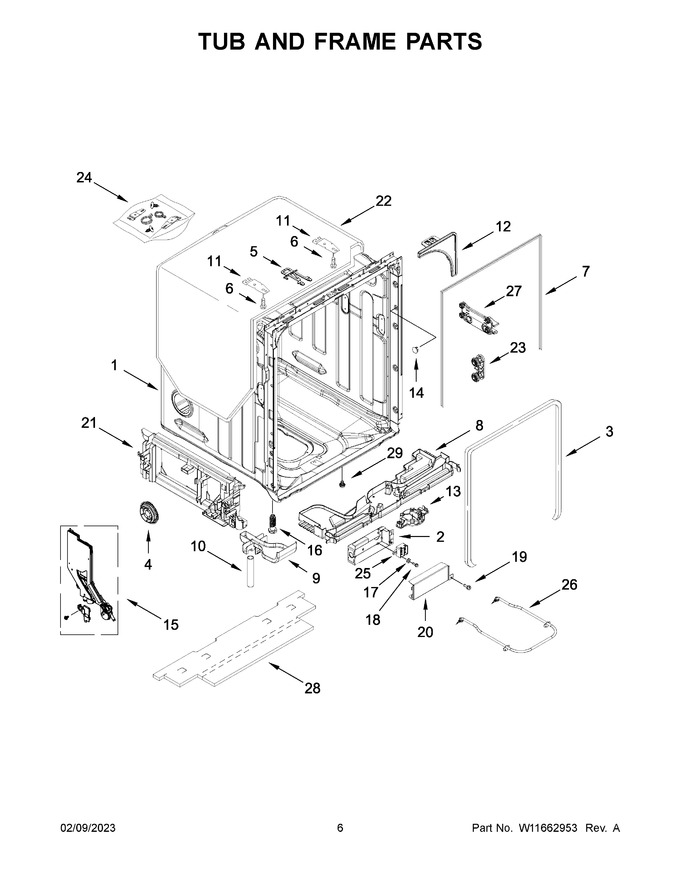

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11409866 | Tub Assembly (includes Gasket) (Replaces: W11120458) |
|
Immediately | $ 656.62 | ||||
| 2 | W11226744 | Base, Terminal Box |
|
Immediately | $ 29.22 | ||||
| 3 | W11768589 | Gasket, Tub (Replaces: W11035860) |
|
Immediately | $ 30.14 | ||||
| 4 | W11535081 | Nut, Water Inlet (Replaces: W11429974) |
|
Immediately | $ 12.55 | ||||
| 5 | W11545309 | Strike, Latch (Replaces: W11090487) |
|
Immediately | $ 15.51 | ||||
| 6 | W11551549 | Screw (Replaces: W11296374) |
|
$ 14.02 | |||||
| 7 | W11414078 | Seal, Cabinet (Replaces: W11165091) |
|
Immediately | $ 25.71 | ||||
| 8 | W11550169 | Drip Tray (Replaces: W11025993) |
|
Immediately | $ 40.36 | ||||
| 9 | W11025986 | Funnel, Overfill Protection |
|
$ 21.55 | |||||
| 10 | W11025988 | Funnel Extension |
|
Immediately | $ 27.00 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | W11579566 | Cover, Tub Corner (Replaces: W11165093) |
|
Immediately | $ 16.18 | ||||
| 13 | W11545764 | Float Switch (Replaces: W11255994) |
|
Immediately | $ 23.80 | ||||
| 14 | W11573757 | Plug, Tub (Replaces: W11184083) |
|
Immediately | $ 12.25 | ||||
| 15 | W11535094 | Water Inlet Assembly (Replaces: W11429970) |
|
Immediately | $ 115.44 | ||||
| 16 | W11561254 | Leg, Leveling (Replaces: W11455395) |
|
Immediately | $ 15.97 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 9.03 | |||||
| 18 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.75 | |||||
| 19 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.19 | |||||
| 20 | W11407385 | Cover, Terminal Box (Replaces: W11226746) |
|
Immediately | $ 29.44 | ||||
| 21 | W11679658 | Side Support, Tub (left Hand) (Replaces: W10920122) |
|
Immediately | $ 65.55 | ||||
| 22 | W11579564 | Shield, Tub Sound (Replaces: W11158115) |
|
Immediately | $ 57.56 | ||||
| 23 | W11614118 | Tub Mount, Upper Rack (Replaces: W11086088) |
|
Immediately | $ 22.33 | ||||
| 24 | W11502191 | Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) (Replaces: W11362500) |
|
Immediately | $ 23.29 | ||||
| 25 | W11573809 | Terminal Block (Replaces: W11132441) |
|
Immediately | $ 30.63 | ||||
| 26 | W11537778 | Heater Element Assembly (Replaces: W11536143) |
|
Immediately | $ 83.50 | ||||
| 27 | W11579562 | Tub Mount, Third Level Rack (left Hand) (Replaces: W11101573) |
|
Immediately | $ 29.44 | ||||
| 28 | W11393126 | Sound Insulation, Bottom |
|
$ 34.94 | |||||
| 29 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 21A | W11679657 | Side Support, Tub (right Hand) (Replaces: W10920120) |
|
Immediately | $ 65.64 | ||||
| 27A | W11596053 | Tub Mount, Third Level Rack (right Hand) (Replaces: W11256439) |
|
Immediately | $ 109.19 |
