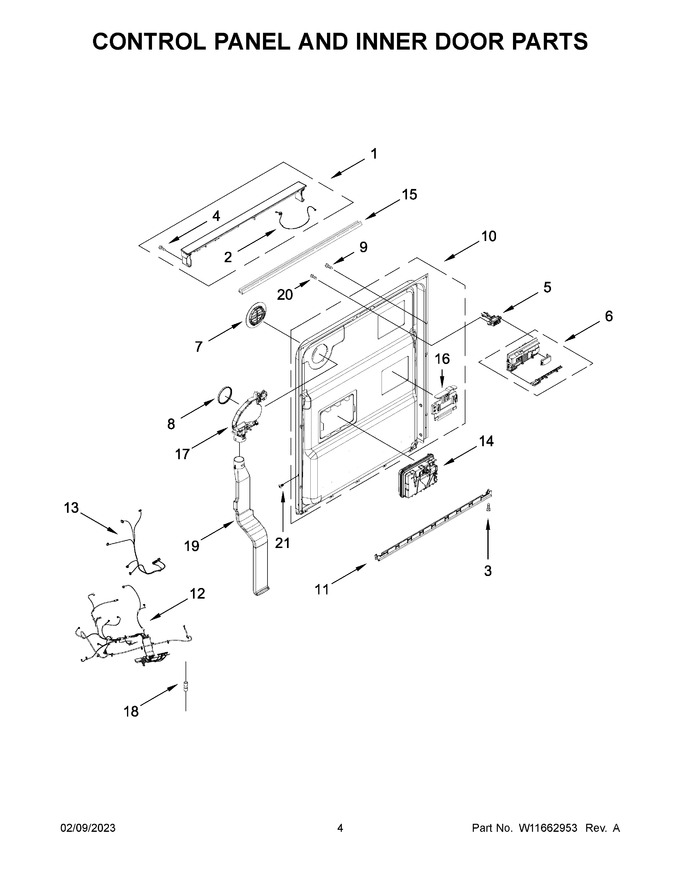

03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11672209		Console Cap (black)   (Replaces: W11500351)		Appelez-nous	-
2	W11690158		Jumper, Door   (Replaces: W11336943)				$ 16.86
3	W11627527		Screw   (Replaces: W11258418)			Immediately	$ 14.02
4	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.19
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 28.07
6	W11672228		Control, Electronic   (Replaces: W11591731)		Appelez-nous	-
7	W11545290		Bezel, Vent   (Replaces: W11025634)			Immediately	$ 14.16
8	W11545539		Gasket, Vent   (Replaces: W11184028)			Immediately	$ 9.69
9	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 7.76
10	W11559689		Inner Door Assembly   (Replaces: W11098822)				$ 354.95
11	W11664713		Seal, Door Bottom   (Replaces: W11563231)			Immediately	$ 59.49
12	W11677715		Wiring Harness, Main (includes Thermostat & Fuse)   (Replaces: W11391581)			Immediately	$ 162.49
13	W11678803		Wiring Harness, Inner Door   (Replaces: W11630924)			Immediately	$ 21.33
14	W11412300		Dispenser Assembly   (Replaces: W11092649)			Immediately	$ 172.65
15	W11213719		Seal, Console/door   (Replaces: W11265187)			Immediately	$ 164.54
16	W11088985		Hanger, Control				$ 32.60
17	W11414073		Vent Assembly (includes Fan)   (Replaces: W11038720)			Immediately	$ 137.95
18	W11397505		Fuse, In-line				$ 115.82
19	W11038734		Duct, Vent				$ 82.11
20	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.19
21	WP3400071		Screw   (Replaces: 3400071)				$ 7.82
