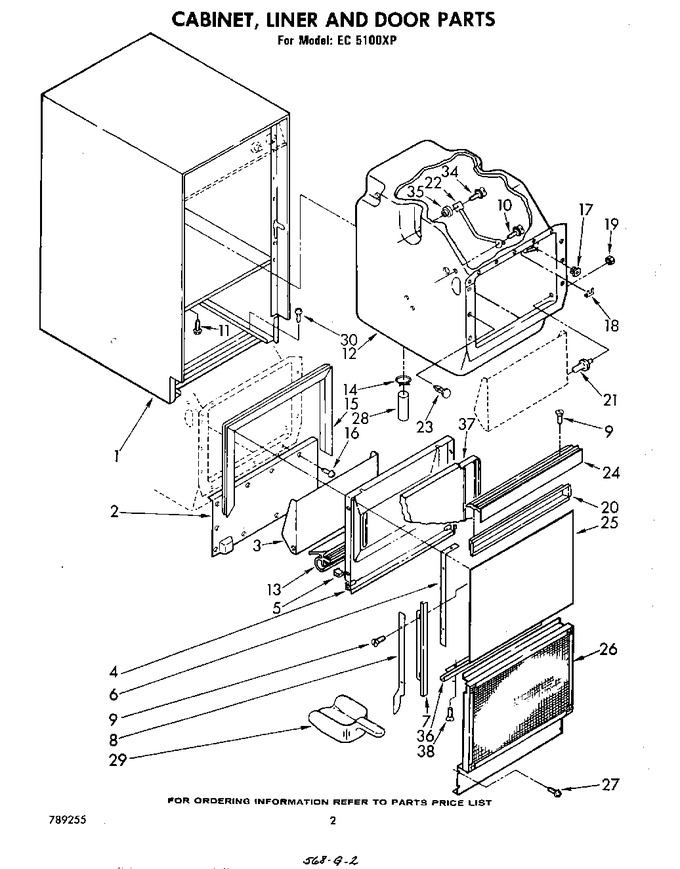

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757942		Shell		Appelez-nous	-
2	758652		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758655		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	758748		Trim, Door (2)		Appelez-nous	-
8	593184		Rail, R.s.		Appelez-nous	-
8	593185		Rail, L.s.		Appelez-nous	-
9	681459		Screw, 8-32 X 1/2 (6)		Appelez-nous	-
10	680930		Thumbscrew		Appelez-nous	-
11	681036		Screw, Ground		Appelez-nous	-
12	756350		Liner (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
13	758169		Gasket, Bottom		Appelez-nous	-
14	596023		Clamp (2)		Appelez-nous	-
15	756663		Gasket		Appelez-nous	-
16	WP965173		Screw, 8-32 X 3/8   (Replaces: 595431)			Immediately	$ 11.87
17	596807		Grommet		Appelez-nous	-
18	758492		Washer		Appelez-nous	-
19	681542		Nut, 1/4 Hex		Appelez-nous	-
20	758752		Pocket, Handle		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596812		Clip, Panel (12)		Appelez-nous	-
24	758622		Handle, Recessed		Appelez-nous	-
25	758746		Panel, Exterior (white & Black)		Appelez-nous	-
25	758745		Panel, Exterior (almond & Harvest Gold)		Appelez-nous	-
25	758740		Panel, Exterior (toast & Platinum)		Appelez-nous	-
26	758476		Grille		Appelez-nous	-
27	WP90767		Screw, 8-32 X 3/8   (Replaces: 681167)			Immediately	$ 8.25
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
34	681419		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut (3)		Appelez-nous	-
36	758400		Trim, Door (lower)		Appelez-nous	-
37	758608		Insulation, Door		Appelez-nous	-
38	WP503695		Cork Sealer   (Replaces: 503695)				$ 123.84
38	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
38	681196		Screw		Appelez-nous	-
38	758469		Grid Assembly Complete (standard Cube)		Appelez-nous	-
38	758470		Grid Assembly Complete (cubelets 3/4 X 3/4)		Appelez-nous	-
38	876649		Leg Kit		Appelez-nous	-
38	702354		Ice Deflector Kit		Appelez-nous	-
38	978026		Valve, Access (5/16``)			Immediately	$ 134.49
	LIT758559		Instructions, Installation		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT789255		List, Parts		Appelez-nous	-
	LIT758459		Sheet, Tech		Appelez-nous	-
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 94.14
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	LIT758558		Instructions, Owner`s		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
