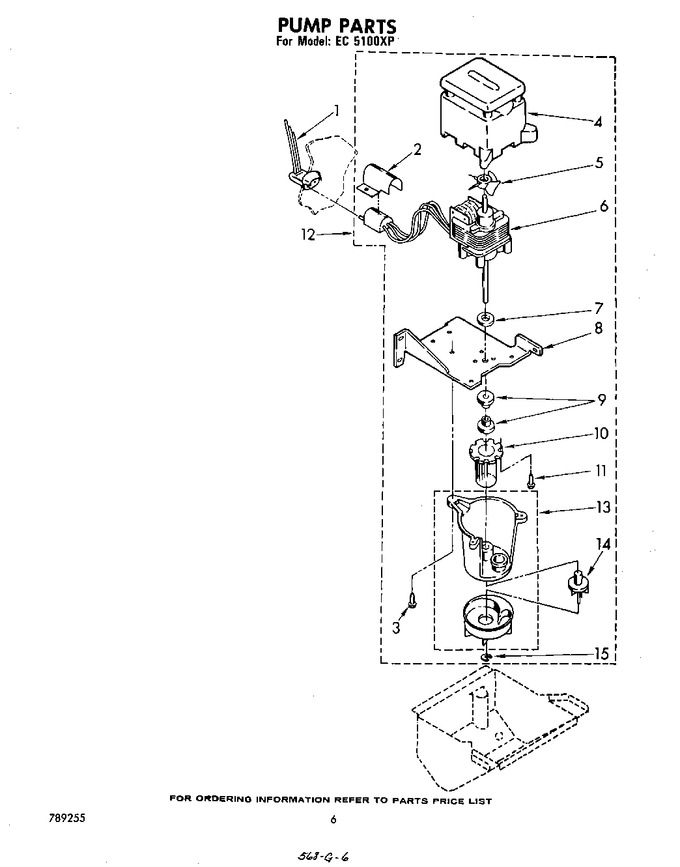

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 569434 | Plug, Pump |
|
- | |||||
| 2 | 756124 | Cover, Plug |
|
- | |||||
| 3 | 681391 | Screw, 8-18 X 3/4 |
|
- | |||||
| 4 | 593702 | Housing, Motor |
|
- | |||||
| 5 | 587096 | Blade, Fan |
|
- | |||||
| 6 | 756950 | Motor, Pump |
|
- | |||||
| 7 | 593060 | Washer |
|
- | |||||
| 8 | 756122 | Bracket, Pump |
|
- | |||||
| 9 | 596016 | Grommet (2) |
|
- | |||||
| 10 | 593229 | Sleeve |
|
- | |||||
| 11 | 681390 | Screw, 8-32 X 3/8 |
|
$ 13.71 | |||||
| 12 | WP756782 | Pump, Water (complete Assembly) (Replaces: 756782) |
|
$ 510.95 | |||||
| 13 | 583518 | Pump, Assembly |
|
- | |||||
| 14 | COMM PART | Impeller (includes Retaining Ring 15) (Replaces: 569513) |
|
- | |||||
| 15 | 681301 | Ring, Retaining |
|
- |
