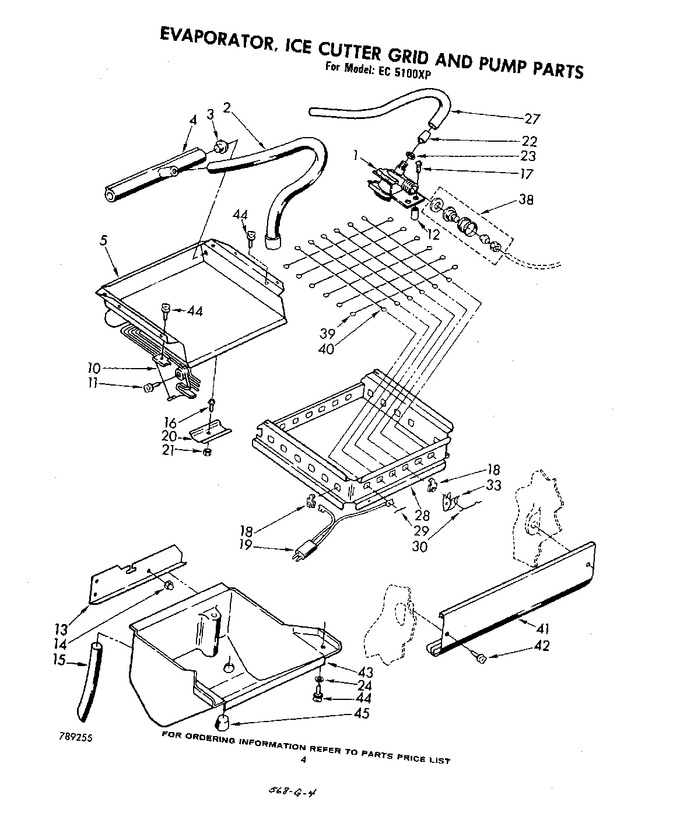

03 - Evaporator, Ice Cutter Grid And Pump


04 - Pump


05 - Escutcheon And Control


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757433		Valve, Complete Water		Appelez-nous	-
2	585856		Tube, Plastic		Appelez-nous	-
3	564061		Plug (2)		Appelez-nous	-
4	585813		Dispenser, Water		Appelez-nous	-
5	758028		Evaporator		Appelez-nous	-
10	756564		Bracket, Grid Mounting (2)		Appelez-nous	-
11	681611		Thumbscrew		Appelez-nous	-
12	758493		Spacer, (2) Water Valve		Appelez-nous	-
13	585853		Shelf, Water Pan		Appelez-nous	-
14	681770		Nut, Acorn (3)		Appelez-nous	-
15	593369		Hose, Overflow		Appelez-nous	-
16	596037		Screw, 10-32 X 1/2		Appelez-nous	-
17	681674		Screw, 1/4 X 20 X 1 3/4		Appelez-nous	-
18	598277		Insulator (38)		Appelez-nous	-
19	587639		Cord, Grid		Appelez-nous	-
20	587662		Clamp		Appelez-nous	-
21	681676		Nut, Hex 10-32		Appelez-nous	-
22	4387491		Insert,   (Replaces: 841707)				$ 7.41
23	WP627018		Nut & Sleeve Assembly   (Replaces: 627018)				$ 10.36
24	681245		Washer,		Appelez-nous	-
27	W10823511		Tube, Plastic   (Replaces: 758037)			Immediately	$ 29.17
28	758458		Frame, Grid (not A Service Item)		Appelez-nous	-
29	587111		Pin (17)		Appelez-nous	-
30	587112		Pin (4)		Appelez-nous	-
33	564072		Clip (19)		Appelez-nous	-
38	533238		Adapter (supplied In Literature Package)		Appelez-nous	-
39	588048		Kit (includes 9 Grid Cutter Wires)		Appelez-nous	-
40	588109		Kit (includes 10 Grid Cutter Wires)		Appelez-nous	-
41	593171		Panel, Grid		Appelez-nous	-
42	681534		Thumbscrew, 10-32 X 3/4				$ 11.33
43	756659		Pan		Appelez-nous	-
44	681419		Thumbscrew, 10 X 1/2		Appelez-nous	-
45	593572		Stopper, Water Pan		Appelez-nous	-
