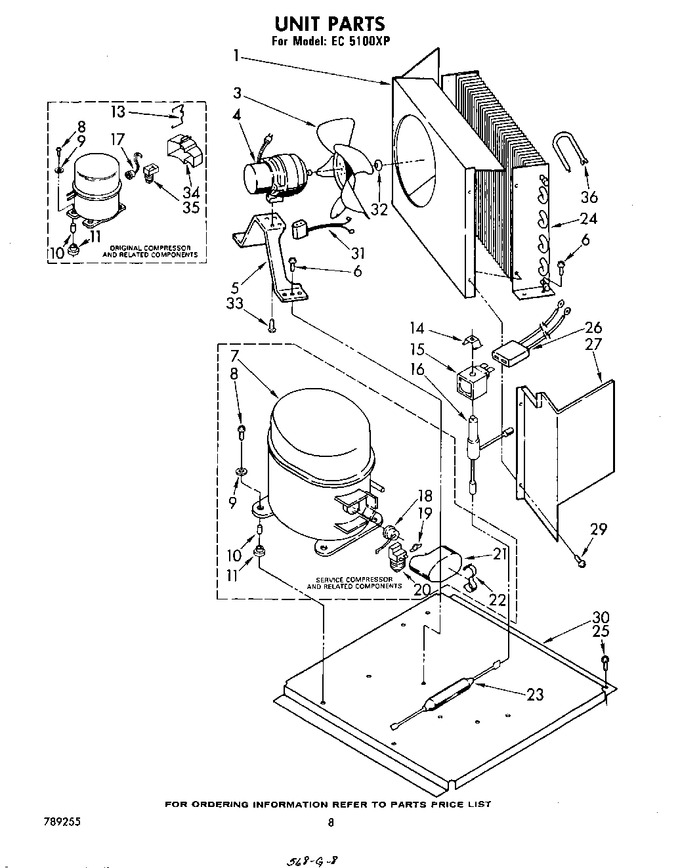

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757955		Shroud		Appelez-nous	-
3	572728		Blade, Fan		Appelez-nous	-
4	593363		Motor, Fan		Appelez-nous	-
5	560817		Bracket		Appelez-nous	-
6	681305		Screw, 1/4-20 X 1/2 (5)		Appelez-nous	-
7	485780		Compressor		Appelez-nous	-
8	680233		Screw (4)		Appelez-nous	-
9	595230		Washer (4)		Appelez-nous	-
10	585564		Sleeve (4)		Appelez-nous	-
11	596355		Grommet (4)		Appelez-nous	-
13	753598		Clamp (used W/original Compressor)		Appelez-nous	-
14	564234		Clamp, Coil Retainer		Appelez-nous	-
15	587970		Coil, Solenoid		Appelez-nous	-
16	598086		Valve, Body		Appelez-nous	-
17	758638		Overload (used W/original Compressor)		Appelez-nous	-
18	589231		Overload (used W/service Compressor)		Appelez-nous	-
19	549086		Spring (used W/service Compressor)		Appelez-nous	-
20	549337		Relay (used W/service Compressor)		Appelez-nous	-
21	549336		Case (used W/service Compressor)		Appelez-nous	-
22	549342		Strap, Bale (used W/service Compressor)		Appelez-nous	-
23	W10843121		Drier   (Replaces: 755649)			Immediately	$ 57.13
24	756299		Condenser		Appelez-nous	-
25	680811		Screw,		Appelez-nous	-
26	587971		Harness, Coil		Appelez-nous	-
27	593519		Deflector, Front		Appelez-nous	-
29	WP90767		Screw   (Replaces: 681167)			Immediately	$ 8.25
30	756345		Base, Unit		Appelez-nous	-
31	585219		Plug, Fan Motor		Appelez-nous	-
32	681650		Washer, Conical (included With Fan Motor)		Appelez-nous	-
33	681656		Screw, 8-36 X 1/2 (included With Fan Motor)		Appelez-nous	-
34	1105015		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
35	758637		Relay, Start (used W/original Compressor)		Appelez-nous	-
36	756298		Accumulator		Appelez-nous	-
