Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

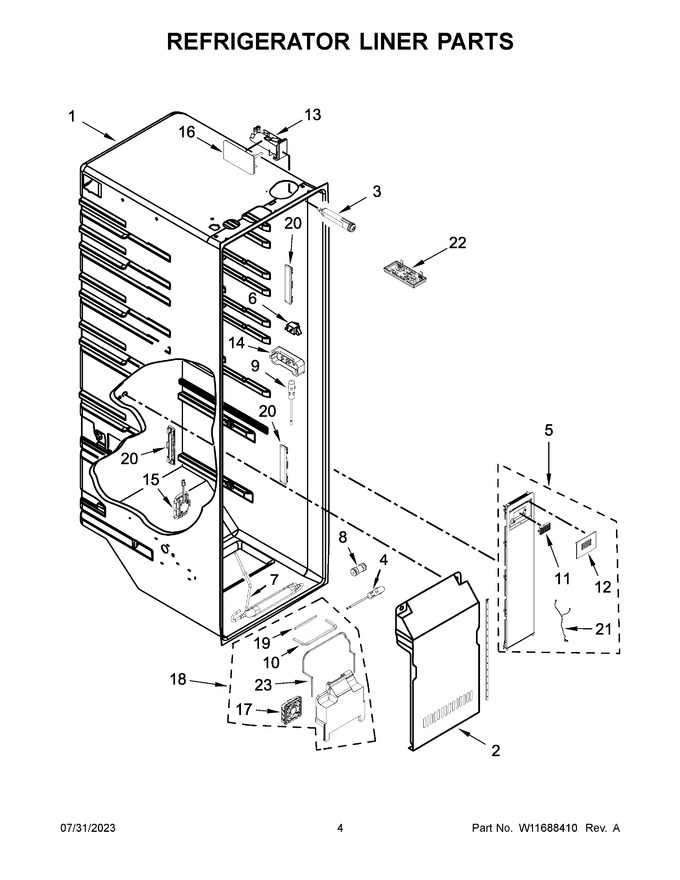

Diagram for 03 - Refrigerator Liner Parts
03 - Refrigerator Liner Parts

Diagram for 04 - Refrigerator Shelf Parts
04 - Refrigerator Shelf Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Motor And Ice Container Parts
06 - Motor And Ice Container Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Dispenser Parts
09 - Dispenser Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI8B23AD81B97D70C7853D17BAA6EEAA2D Liner (not A Serviceable Part) Appelez-nous -
2 WPW10387382 Cover, Evaporator   (Replaces: W10387382) Special Order $ 245.04

3 EDR1RXD1B Filter, Water   (Replaces: W10735398) In-Stock Immediately $ 49.99

4 WPW10384183 Thermistor   (Replaces: W10384183) In-Stock Immediately $ 118.47

5 W11720841 Tower, Air   (Replaces: W11565238) Appelez-nous -
6 W11384469 Switch, Rocker   (Replaces: W10847853) In-Stock Immediately $ 39.09

7 W11204869 Reservoir   (Replaces: W10538994) Special Order $ 167.67

8 WPW10271543 Connector, Water Tube   (Replaces: W10271543) In-Stock Immediately $ 35.43

9 W11724692 Thermistor   (Replaces: W10280385) In-Stock Immediately $ 33.60

10 W11676537 Gasket, Upper   (Replaces: W10387387) Special Order $ 26.24

11 W10311524 Filter, Air   (Replaces: W10315189) In-Stock Immediately $ 14.34

12 W10341548 Cover, Air Filter Special Order $ 80.75

13 WPW10394053 Housing, Water Filter   (Replaces: W10394053) In-Stock Immediately $ 139.80

14 WPW10425252 Cover, Thermistor   (Replaces: W10425252) In-Stock Immediately $ 88.38

15 W11674510 Assembly, Led Light Module   (Replaces: W11234011) Appelez-nous -
16 W11501035 Cover, Water Filter   (Replaces: W11389740) Special Order $ 15.70

17 W11340145 Fan Assembly, Evaporator   (Replaces: W10862076) Special Order $ 338.77

18 W11608966 Evaporator Insulation, With Fan Assembly   (Replaces: W11512827) Special Order $ 266.55

19 W11676538 Gasket, Rear   (Replaces: W10394945) Special Order $ 27.06

20 W10876365 Lighting, Led-strip   (Replaces: W10826780) In-Stock Immediately $ 94.76

21 W10777986 Wire Assembly , Tower Appelez-nous -
22 W11226500 Assembly, Led   (Replaces: W10724473) In-Stock Immediately $ 117.53

23 W11702233 Gasket, Rear   (Replaces: W10260462) Special Order $ 45.02


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KRSF705HBS05
