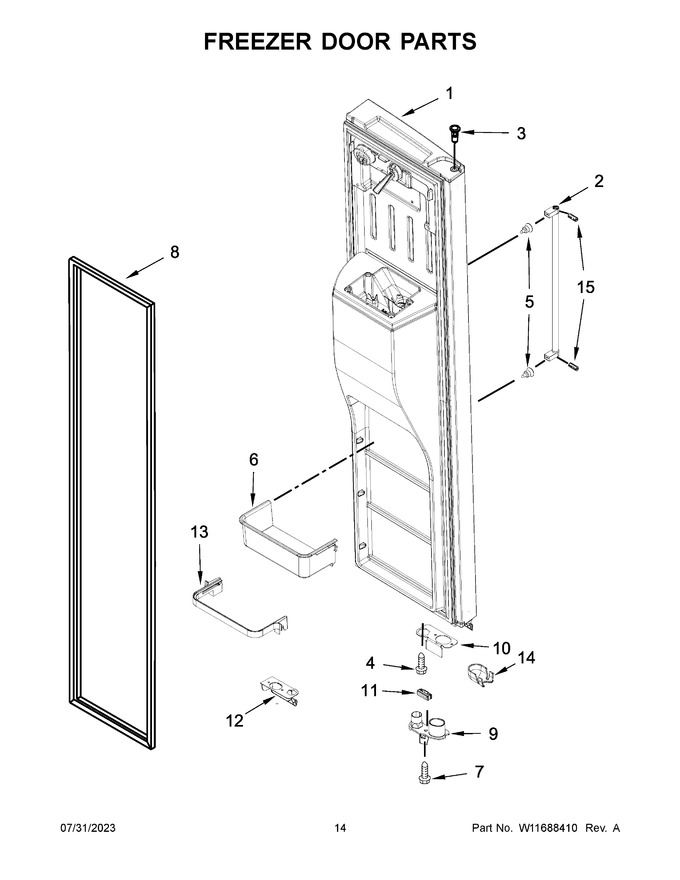

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11611331 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W11536873) |
|
$ 1,476.82 | |||||
| 2 | W11340150 | Handle (stainless) (Replaces: W11252159) |
|
$ 200.19 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10434529 | Bin, Door (Replaces: W10434529) |
|
$ 77.78 | |||||
| 7 | W11298164 | Screw (Replaces: W11204458) |
|
- | |||||
| 8 | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9 | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10910405) |
|
$ 69.21 | |||||
| 11 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 13 | WPW10494336 | Frame, Door Bin (Replaces: W10494336) |
|
$ 243.61 | |||||
| 14 | W10323148 | Cover, Wire |
|
$ 42.25 | |||||
| 15 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 11A | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 1A | W11611334 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless) (Replaces: W11536872) |
|
$ 1,432.17 | |||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 321.05 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 |
