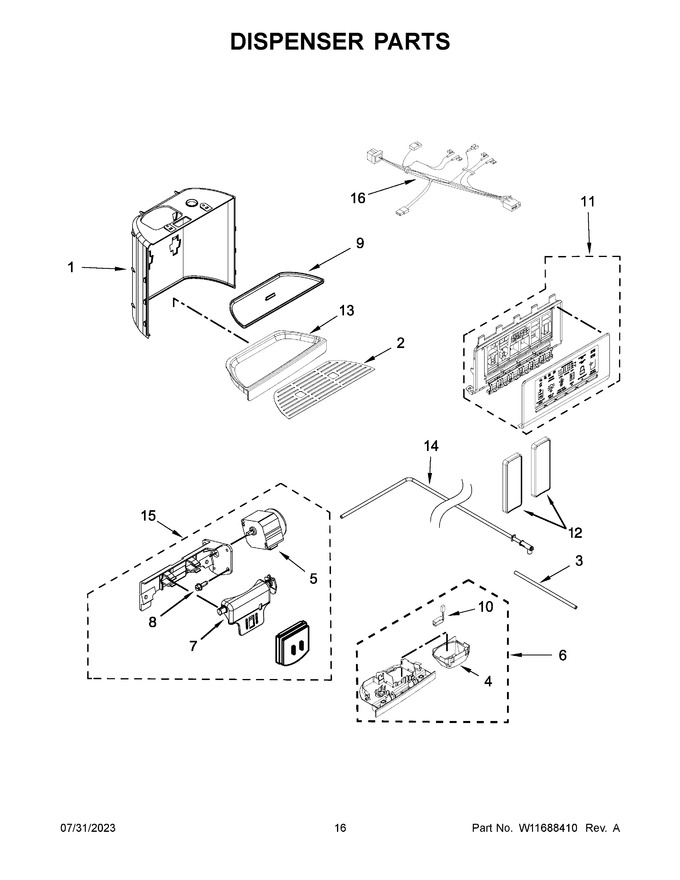

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317259 | Wall, Dispenser False (black) |
|
Immediately | $ 133.62 | ||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 75.65 | |||||
| 3 | WPW10279831 | Tube, Water (Replaces: W10279831) |
|
$ 133.08 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10353593 | Assembly, Seperator |
|
$ 135.48 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W11404939 | Drip Tray, Insert (black) |
|
$ 61.75 | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 11 | W11608967 | User Interface Assembly (Replaces: W11384534) |
|
$ 445.75 | |||||
| 12 | WPW10346924 | Assembly, Pad (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 | ||||
| 13 | W10317265 | Tray, Housing (black) |
|
$ 62.19 | |||||
| 14 | W11567542 | Tube, Dual Dispenser Water (Replaces: W10403778) |
|
- | |||||
| 15 | W11130210 | Assembly, Ice Door (Replaces: W10781990) |
|
$ 160.56 | |||||
| 16 | W11025771 | Harness, Wire |
|
$ 79.40 | |||||
| 12A | W11561037 | Assembly, Pad (black) (Replaces: W10317253) |
|
$ 82.93 |
