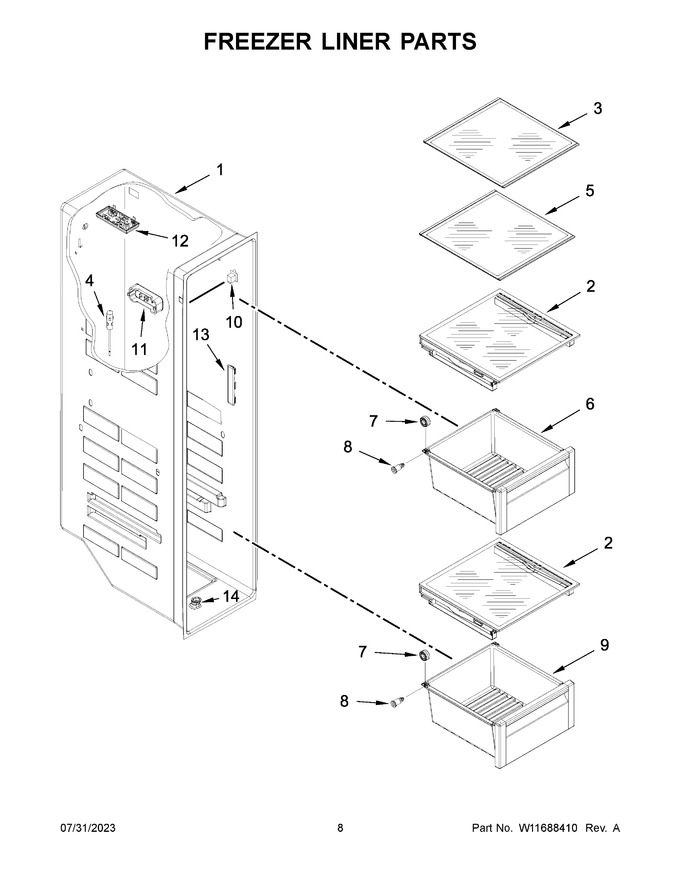

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI9208FF59B665205FA02090F61BA46518 | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10362175 | Assembly, Cover |
|
$ 266.72 | |||||
| 3 | W10321181 | Shelf, Glass Upper |
|
$ 267.27 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10438761) |
|
Immediately | $ 33.60 | ||||
| 5 | WPW10321182 | Shelf, Glass Lower (Replaces: W10321182) |
|
$ 273.66 | |||||
| 6 | W10846447 | Bin Assembly (Replaces: W10542031) |
|
Immediately | $ 273.37 | ||||
| 7 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 8 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 9 | W10542032 | Bin Assembly |
|
$ 309.79 | |||||
| 10 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | W11226500 | Assembly, Led (Replaces: W10724473) |
|
Immediately | $ 117.53 | ||||
| 13 | W10876365 | Lighting, Led-strip (Replaces: W10826780) |
|
Immediately | $ 94.76 | ||||
| 14 | W10370680 | Fitting, Drain |
|
$ 37.83 |
