Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11172772 Use & Care Guide Appelez-nous -
2 W11225694 Light Cover, 6-way Special Order $ 26.47

3 W11225728 Light Cover, 3-way Special Order $ 25.58

4 W11225753 Button In-Stock Immediately $ 15.71

5 W11225777 Cover Sticker, Control Panel Special Order $ 68.27

6 W11250153 Control Panel   (Replaces: W11247319) In-Stock Immediately $ 349.73

7 W11689793 Panel, Outer Door   (Replaces: W11689456) Appelez-nous -
8 W11247322 Display, Control Board Special Order $ 161.46

9 W11689791 Spring   (Replaces: W11689453) Appelez-nous -
1A W11160365 Installation Instructions Appelez-nous -
1B W11223043 Tech Sheet Appelez-nous -
1C W11160370 Installation Instructions, Custom Panel Appelez-nous -
1D W11380462 Template, Custom Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

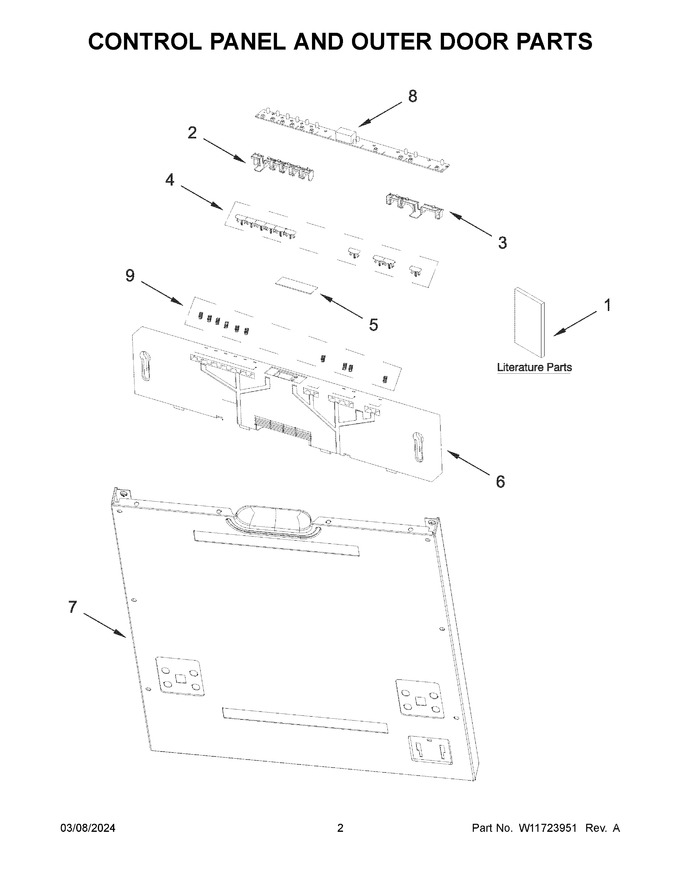

Diagram for UDPS5118PP0
