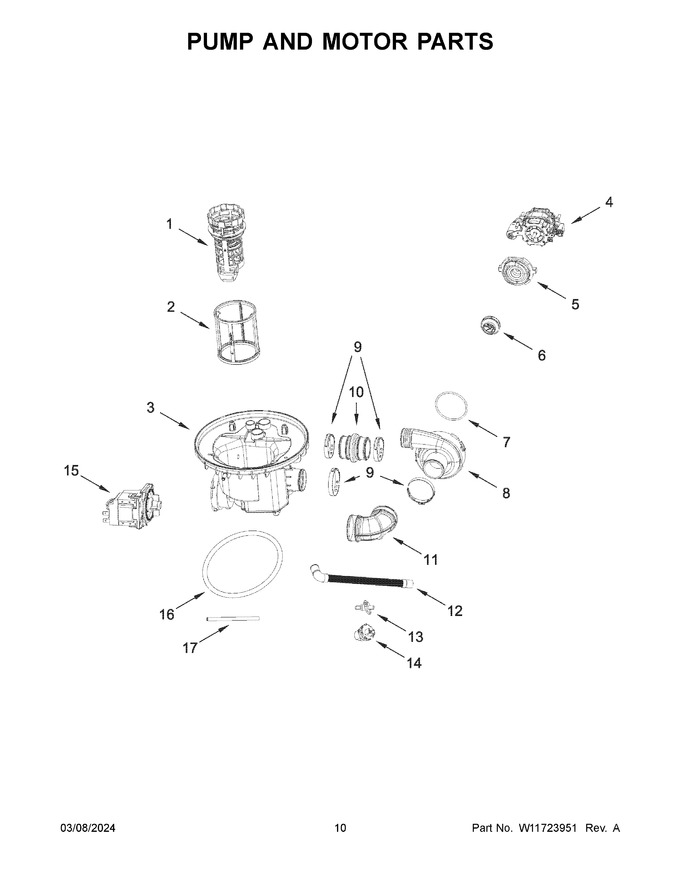

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11226875 | Filter Handle |
|
$ 64.71 | |||||
| 2 | W11226876 | Filter |
|
$ 65.60 | |||||
| 3 | W11226878 | Sump |
|
Immediately | $ 250.72 | ||||
| 4 | W11230164 | Motor |
|
Immediately | $ 387.77 | ||||
| 5 | W11799482 | Housing, Lower Pump (Replaces: W11226885) |
|
$ 282.75 | |||||
| 6 | W11226886 | Impeller |
|
$ 34.16 | |||||
| 7 | W11811736 | Gasket, Pump (Replaces: W11226887) |
|
$ 11.11 | |||||
| 8 | W11226889 | Housing, Upper Pump |
|
Immediately | $ 91.58 | ||||
| 9 | W10783615 | Clamp (Replaces: W11226891) |
|
Immediately | $ 16.74 | ||||
| 10 | W11226893 | Hose |
|
$ 70.44 | |||||
| 11 | W11226894 | Inlet Hose |
|
$ 108.72 | |||||
| 12 | W11689830 | Drain Hose (Replaces: W11689472) |
|
Immediately | $ 108.59 | ||||
| 13 | W11689831 | Thermistor (Replaces: W11689476) |
|
Immediately | $ 27.22 | ||||
| 14 | W11226898 | Trubidity Sensor |
|
$ 84.48 | |||||
| 15 | W11611440 | Pump (Replaces: W11226877) |
|
Immediately | $ 143.60 | ||||
| 16 | W11226899 | Sealing Gasket |
|
$ 36.05 | |||||
| 17 | W11226900 | Inlet Hose |
|
$ 104.89 |
