Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11230167 Upper Rack Assembly Special Order $ 172.32

2 W11689835 Lower Rack Assembly   (Replaces: W11689479) Appelez-nous -
3 W11230169 Silverware Basket Special Order $ 105.99

4 W11689836 Miscellaneous Parts Bag   (Replaces: W11689481) Special Order $ 32.13


    View Diagram in Separate Window     Print Icon   Print Part List

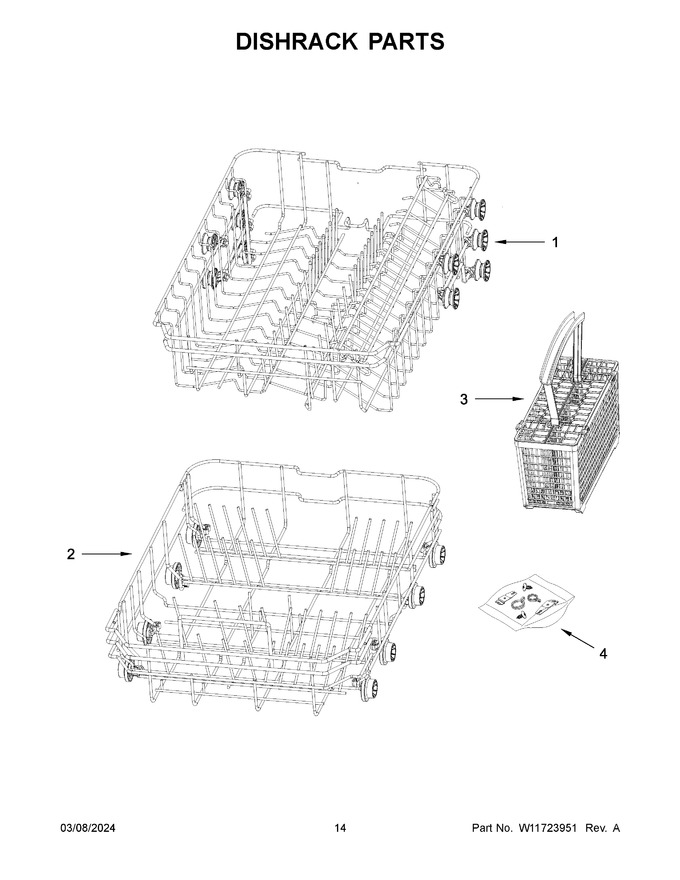

Diagram for UDPS5118PP0
