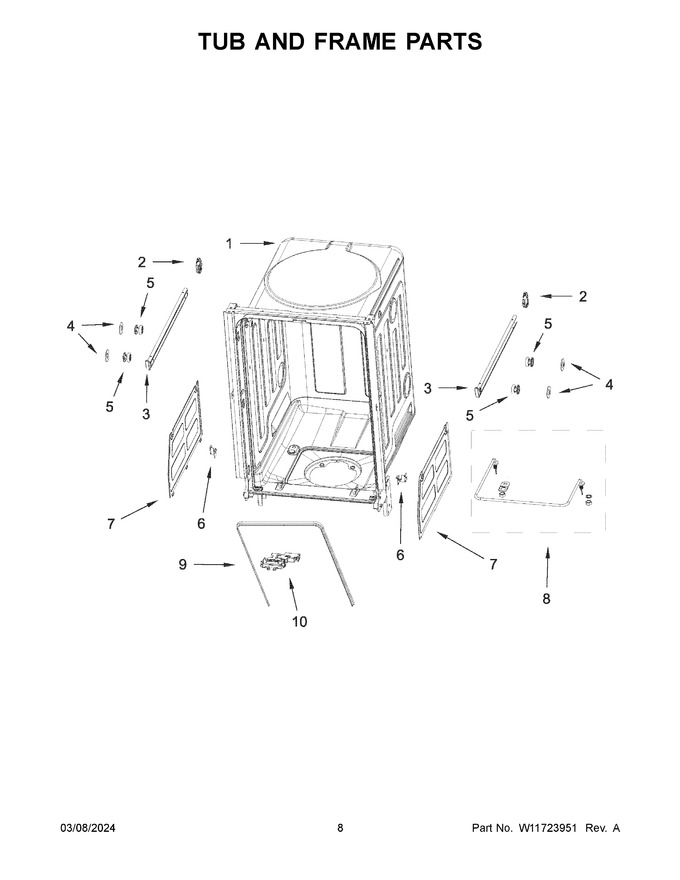

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI50E76A76B5CE3B16D944CF4FD5BFB863		Tub Assembly (not Serviced)		Appelez-nous	-
2	W11226273		Stop, Track				$ 18.08
3	W11226276		Track Assembly (left Hand)		Appelez-nous	-
4	W11226286		Supporting Holder, Basket Guider				$ 12.11
5	W11226280		Wheel				$ 73.47
6	W11662338		Bracket (left Hand)   (Replaces: W11226292)			Immediately	$ 30.37
7	W11226289		Connecting Panel (left Hand)		Appelez-nous	-
8	W11230139		Heating Element Assembly				$ 128.47
9	W11689825		Gasket, Tub   (Replaces: W11689465)			Immediately	$ 52.83
10	W11689797		Door Switch Assembly   (Replaces: W11689464)				$ 66.11
3A	W11226277		Track Assembly (right Hand)				$ 141.56
6A	W11662338		Bracket (right Hand)   (Replaces: W11226293)			Immediately	$ 30.37
7A	W11226291		Connecting Panel (right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
