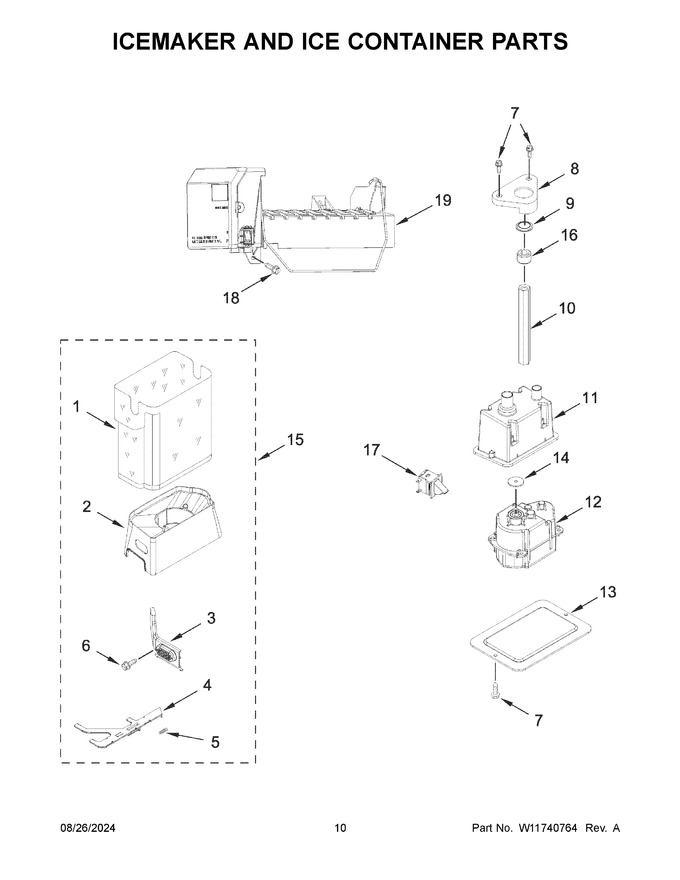

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 262.66 | ||||
| 2 | W11627400 | Bin, Lower Crusher (Replaces: W11567291) |
|
- | |||||
| 3 | W10749207 | Button, Bin |
|
$ 69.70 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 110.96 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 6 | 2198671 | Screw (stainless) |
|
$ 10.92 | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | W11636223 | Clip, Shaft (Replaces: W11443152) |
|
- | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 115.26 | ||||
| 11 | W11608470 | Enclosure, Dispenser Motor |
|
- | |||||
| 12 | W10822606 | Motor, Dispenser (Replaces: W11185741) |
|
Immediately | $ 156.54 | ||||
| 13 | W11608469 | Cover, Dispenser Motor |
|
- | |||||
| 14 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 10.61 | ||||
| 15 | W11747578 | Assembly, Ice Container (Replaces: W11574172) |
|
Immediately | $ 443.27 | ||||
| 16 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
Immediately | $ 85.41 | ||||
| 17 | W11629953 | Switch, Auger Motor (Replaces: W11592419) |
|
$ 26.66 | |||||
| 18 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 19 | W11737192 | Assembly, Complete Icemaker (Replaces: W11548785) |
|
$ 425.50 |
