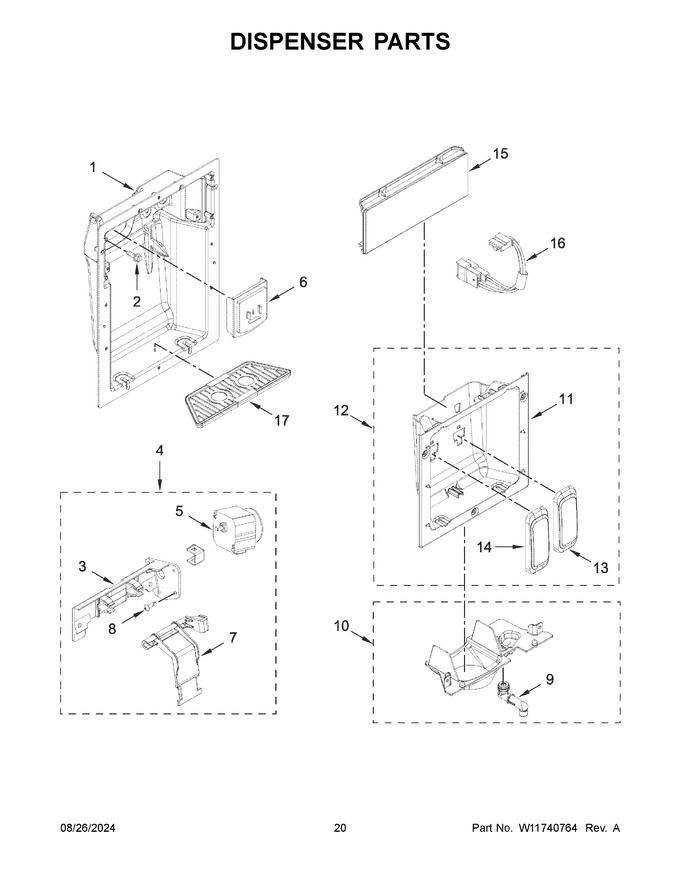

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 3 | W10542660 | Bracket, Motor |
|
Immediately | $ 88.82 | ||||
| 4 | WPW10546285 | Assembly, Motor And Bracket (Replaces: W10546285) |
|
Immediately | $ 104.97 | ||||
| 5 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 102.48 | ||||
| 6 | WPW10504458 | Door, Ice (Replaces: W10504458) |
|
Immediately | $ 24.19 | ||||
| 7 | W10542663 | Support, Ice Door |
|
Immediately | $ 80.68 | ||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.49 | |||||
| 9 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
$ 140.07 | |||||
| 10 | W11649219 | Assembly, Separator |
|
$ 55.19 | |||||
| 11 | ARI8659AC7004BCB431455DB56FB8661A77 | Housing, Middle (not Available Order Item 12) |
|
- | |||||
| 12 | W11625251 | Assembly, Pad Housing (Replaces: W11429556) |
|
Immediately | $ 198.49 | ||||
| 13 | W11626828 | Assembly, Water Paddle (Replaces: W11408129) |
|
$ 65.16 | |||||
| 14 | W11626123 | Assembly, Ice Paddle (Replaces: W11408128) |
|
Immediately | $ 65.16 | ||||
| 15 | W11626104 | Assembly, User Interface (Replaces: W11426690) |
|
Immediately | $ 437.30 | ||||
| 16 | W11629730 | Wire, User Interface Jumper (Replaces: W11428836) |
|
Immediately | $ 25.61 | ||||
| 17 | W11626241 | Assembly, Drip Tray (Replaces: W11408077) |
|
$ 89.29 |
