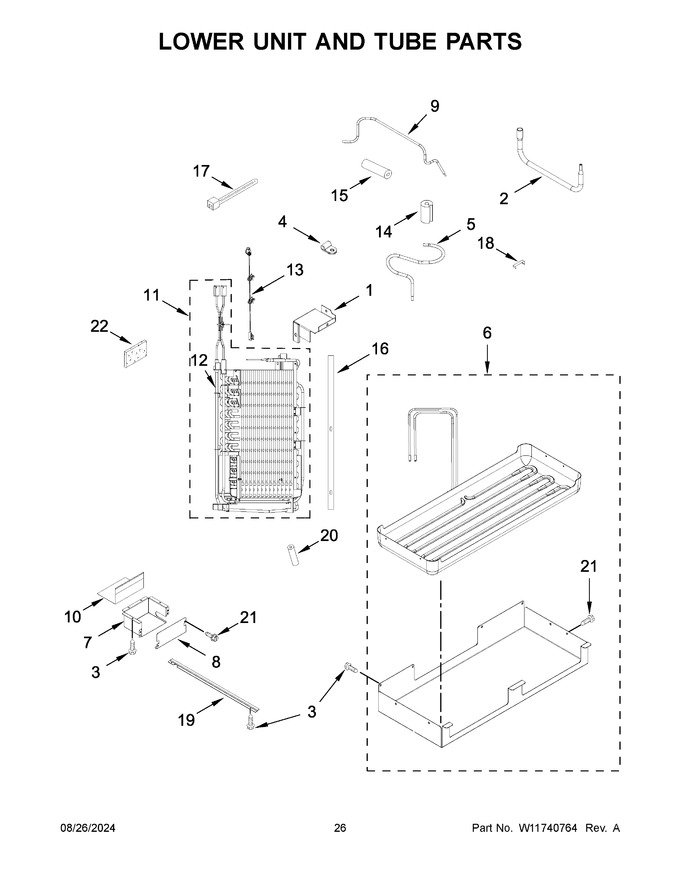

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756943 | Bracket, Evaporator Right Top (Replaces: W11695309) |
|
- | |||||
| 2 | W11530767 | Tube, Transition (drier/restrictor) |
|
- | |||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 5 | W11444578 | Tube, Oil Trap Suction |
|
- | |||||
| 6 | W11623101 | Assembly, Drain Pan (Replaces: W11491712) |
|
Immediately | $ 375.26 | ||||
| 7 | W11756953 | Cover, Wiring Bottom (Replaces: W11695781) |
|
- | |||||
| 8 | W11756952 | Cover, Wire Box (Replaces: W11695782) |
|
- | |||||
| 9 | W11444570 | Tube, Discharge |
|
$ 66.35 | |||||
| 10 | W10321050 | Shelf, Wiring Cover |
|
- | |||||
| 11 | W11837446 | Assembly, Evaporator And Heater (also Order The Following Lokring⢠Parts) (Replaces: W11439436) |
|
Immediately | $ 434.65 | ||||
| 12 | W11626107 | Heater, Defrost (Replaces: W11267072) |
|
Immediately | $ 216.75 | ||||
| 13 | W11629268 | Thermistor, Evaporator (Replaces: W11549269) |
|
Immediately | $ 34.51 | ||||
| 14 | W11715935 | Grommet, Air Return (Replaces: W10413009) |
|
$ 12.93 | |||||
| 15 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 16 | W10432308 | Gasket, Evaporator |
|
- | |||||
| 17 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 18 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 19 | 2320554 | Support, Drain Pan |
|
- | |||||
| 20 | 2215648 | Dampener |
|
$ 12.58 | |||||
| 21 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 22 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 11A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 44.30 | ||||
| 11B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 30.57 |
