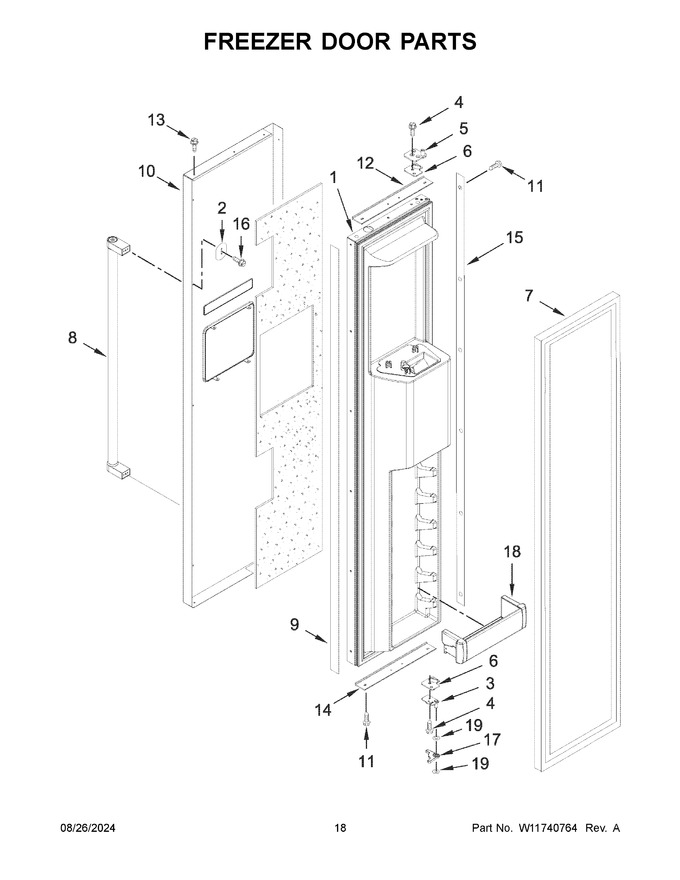

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633382		Door, Freezer   (Replaces: W11502201)				$ 1,544.81
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 295.71
8	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
9	W10758113		Spacer, Handle Side Door		Appelez-nous	-
10	W11633389		Skin, Door (stainless Filler (not Serviced-included With Skin))   (Replaces: W11441147)				$ 1,091.60
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10758123		Spacer, Door Skin Bottom		Appelez-nous	-
15	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W11627399		Bin, Shallow Door   (Replaces: W11408940)				$ 183.24
19	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
