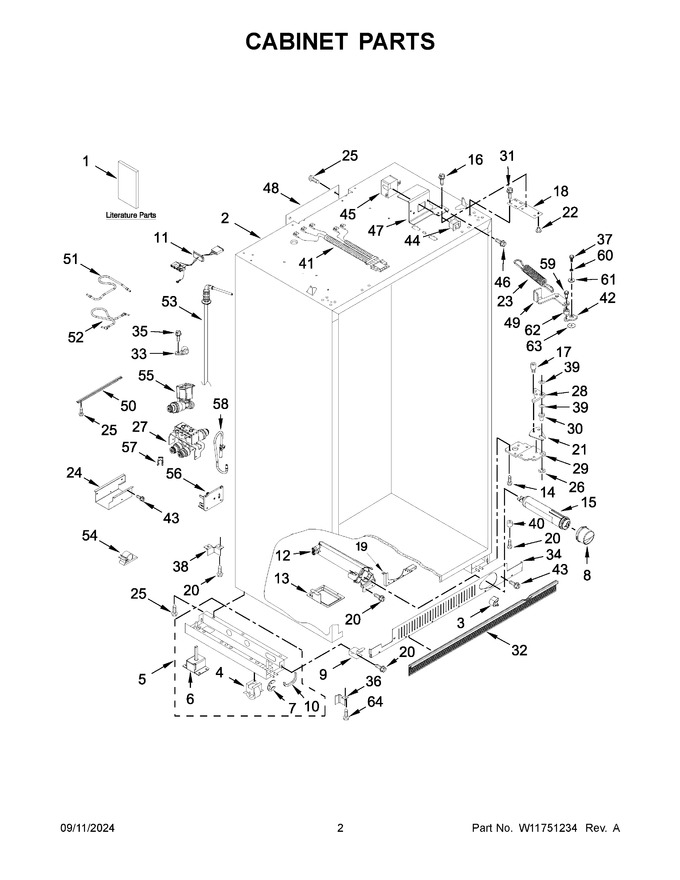

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11490758 | Use And Care Guide |
|
- | |||||
| 2 | ARI0E0595B5C30868CDEDF430A9DC24D80C | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP2260503B | Button, Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 4 | WPW10138054 | Roller Assembly (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 6 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 7 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 8 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 50.68 | ||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 43.26 | |||||
| 10 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 11 | W11421923 | Harness, Water Valve |
|
$ 174.72 | |||||
| 12 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 13 | 2318189 | Tray, Filter Drip |
|
$ 148.73 | |||||
| 14 | 3400525 | Screw |
|
$ 12.83 | |||||
| 15 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 16 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 11.33 | |||||
| 17 | W11769878 | Screw (Replaces: 3400230) |
|
$ 12.77 | |||||
| 18 | 2257644 | Hinge, Top |
|
$ 177.98 | |||||
| 19 | W11755873 | Bracket, Filter (Replaces: W11695780) |
|
$ 80.33 | |||||
| 20 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 21 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 8.39 | ||||
| 22 | W11500952 | Bushing, Top Hinge (Replaces: W10484913) |
|
Immediately | $ 34.74 | ||||
| 23 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 24 | W11439643 | Shield, Water Valve |
|
$ 125.86 | |||||
| 25 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 26 | WP489236 | Ring, Bushing Retaining (Replaces: 2005008) |
|
Immediately | $ 12.78 | ||||
| 27 | WPW10279866 | Valve Assembly, Dual (Replaces: W10279866) |
|
Immediately | $ 138.28 | ||||
| 28 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 | ||||
| 29 | W10527053 | Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
$ 137.73 | |||||
| 30 | WP2302876 | Bushing, Adjustable (Replaces: 2302876) |
|
Immediately | $ 90.72 | ||||
| 31 | W11721628 | Screw (Replaces: W11370632) |
|
Immediately | $ 14.78 | ||||
| 32 | W10859915 | Skirt, Bottom Grille (Replaces: W10188551) |
|
$ 249.29 | |||||
| 33 | 489348 | Clamp, Tube |
|
- | |||||
| 34 | W11739148 | Grille, Front (black) (Replaces: W11695788) |
|
$ 214.59 | |||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 36 | 2006616 | Bracket, Support Base (front) (left Hand) |
|
$ 91.53 | |||||
| 37 | W11354227 | Screw (Replaces: W10761279) |
|
$ 14.77 | |||||
| 38 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 39 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 40 | 2005433 | Spacer |
|
$ 23.33 | |||||
| 41 | W10780213 | Assembly, Switch Wire |
|
$ 130.91 | |||||
| 42 | WP2320509 | Stop, Door (Replaces: 2320509) |
|
$ 29.95 | |||||
| 43 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 44 | W11396033 | Switch, Rocker (Replaces: W10847848) |
|
Immediately | $ 37.30 | ||||
| 45 | W11756944 | Cover, Switch (Replaces: W11695310) |
|
- | |||||
| 46 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 47 | W11610480 | Bracket, Switch (left Hand) |
|
$ 76.49 | |||||
| 48 | 2215612 | Cover, Air Duct |
|
- | |||||
| 49 | W11298172 | Arm, Door Closer Extension (left Hand) (Replaces: W10709785) |
|
Immediately | $ 87.43 | ||||
| 50 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 51 | W11663448 | Tube, Water Filter (Replaces: W11450887) |
|
$ 57.93 | |||||
| 52 | W11634221 | Tube, Water (Replaces: W11449524) |
|
$ 92.77 | |||||
| 53 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 40.93 | ||||
| 54 | W10663352 | Clip |
|
$ 21.91 | |||||
| 55 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 132.98 | ||||
| 56 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 80.75 | |||||
| 57 | W10782424 | Locking Ring(5/16") |
|
- | |||||
| 58 | W11634223 | Waterline (Replaces: W11447812) |
|
Immediately | $ 136.46 | ||||
| 59 | W11177574 | Screw (Replaces: W10485630) |
|
$ 14.84 | |||||
| 60 | WP8533914 | Washer, Lock (Replaces: 8533914) |
|
Immediately | $ 4.72 | ||||
| 61 | W11089212 | Washer (Replaces: 3392186) |
|
$ 11.06 | |||||
| 62 | WP2316859 | Bushing, Extension Arm (Replaces: 2316859) |
|
Immediately | $ 54.20 | ||||
| 63 | W11171640 | Cover, Hinge Pin (Replaces: W11103275) |
|
Immediately | $ 32.63 | ||||
| 64 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 1A | W11648174 | Energy Guide |
|
- | |||||
| 1B | W11494196 | Tech Sheet |
|
- | |||||
| 1C | W11590464 | Installation Instructions |
|
- | |||||
| 29A | WP2006780 | Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
$ 299.33 | |||||
| 36A | 2006556 | Bracket, Support Base (front) (right Hand) |
|
$ 37.20 | |||||
| 44A | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 47A | W11610479 | Bracket, Switch (right Hand) |
|
- | |||||
| 49A | W10847927 | Arm, Door Closer Extension (right Hand) (Replaces: W10728112) |
|
$ 99.91 | |||||
| 57A | W10782423 | Locking Ring (1/4") |
|
$ 24.37 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 383.00 |
