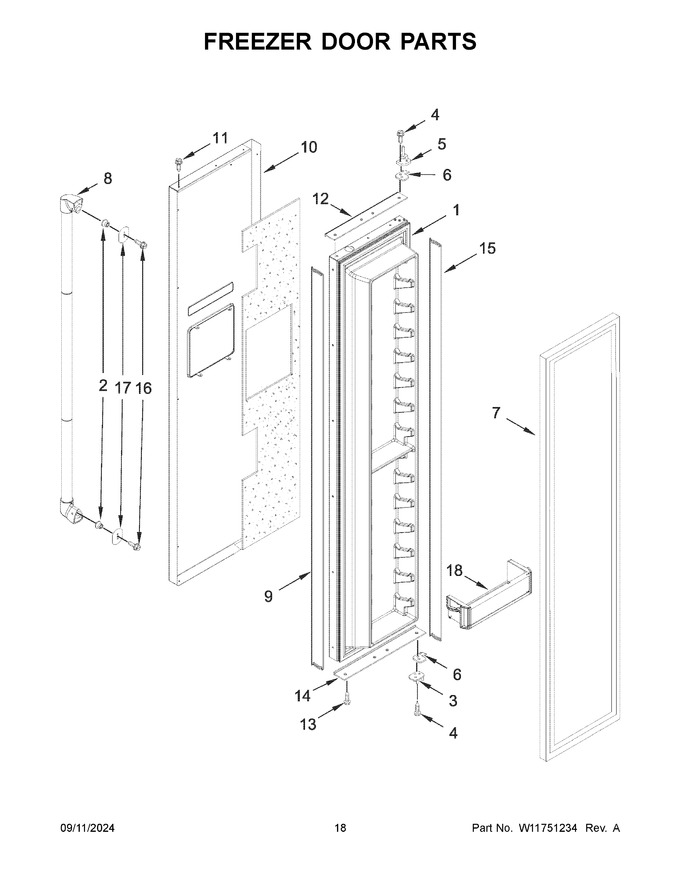

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633128 | Door, Freezer (Replaces: W11502204) |
|
$ 1,887.06 | |||||
| 2 | W11631830 | Stud, Handle Mounting (Replaces: W11564087) |
|
$ 12.80 | |||||
| 3 | W11752085 | Hinge Assembly, Bottom (Replaces: 2302879) |
|
$ 63.07 | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 5 | W11673500 | Hinge Assembly, Top (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 6 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | W10800818 | Gasket, Door (black) (Replaces: W10749269) |
|
Immediately | $ 382.37 | ||||
| 8 | W11358123 | Handle, Door (stainless) |
|
- | |||||
| 9 | W10758377 | Spacer, Handle Side Door |
|
$ 109.79 | |||||
| 10 | W11633384 | Skin, Door (stainless Filler (not Serviced-included With Skin)) (Replaces: W11441146) |
|
$ 1,528.56 | |||||
| 11 | W11748041 | Screw (stainless) (Replaces: W11672062) |
|
- | |||||
| 12 | W10758114 | Spacer, Door (top) |
|
- | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 14 | W10766559 | Spacer, Door (bottom) |
|
- | |||||
| 15 | W10758378 | Spacer, Hinge Side Door |
|
- | |||||
| 16 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 17 | W10127710 | Plate, Handle Door |
|
Immediately | $ 25.94 | ||||
| 18 | W11450414 | Bin, Shallow |
|
$ 404.80 |
