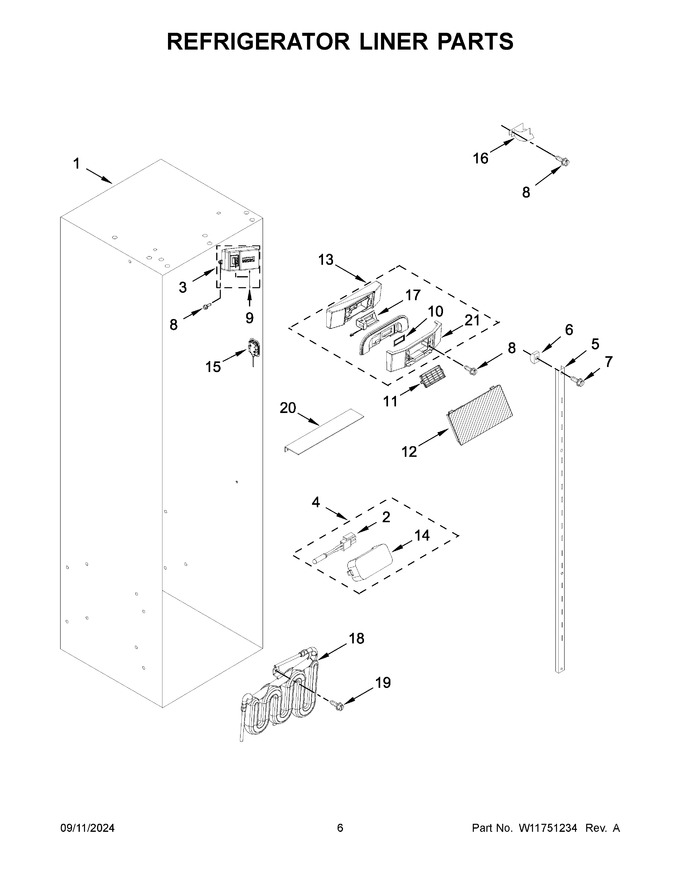

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 3 | W11744513 | Assembly, Air Diffuser Cover (includes Thermistor) (Replaces: W11447197) |
|
$ 130.58 | |||||
| 4 | W11759117 | Assembly, Thermistor (Replaces: W11550867) |
|
Immediately | $ 45.05 | ||||
| 5 | W11481489 | Ladder, Shelf |
|
- | |||||
| 6 | 520965 | Support, Ladder |
|
$ 31.35 | |||||
| 7 | W10678207 | Screw (Replaces: W10832438) |
|
$ 16.43 | |||||
| 8 | W10678210 | Screw (black) |
|
$ 19.80 | |||||
| 9 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 88.41 | |||||
| 10 | W11480891 | Gasket, Air Baffle |
|
$ 30.11 | |||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W11480887 | Cover, Diffuser Assembly |
|
- | |||||
| 13 | W11741459 | Assembly, Diffuser (Replaces: W11449567) |
|
$ 415.21 | |||||
| 14 | W11235125 | Cover, Thermistor (Replaces: W10912104) |
|
$ 108.10 | |||||
| 15 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 16 | W10775705 | Guard, Air Return |
|
- | |||||
| 17 | WP2220377 | Baffle, Air (Replaces: 2220377) |
|
Immediately | $ 381.05 | ||||
| 18 | W11825825 | Reservoir, Water (Replaces: W11463083) |
|
$ 139.14 | |||||
| 19 | W10141518 | Screw |
|
$ 9.54 | |||||
| 20 | W10782835 | Diverter, Crisper Cover |
|
$ 63.35 | |||||
| 21 | W11449561 | Cover, Air Diffuser |
|
- |
