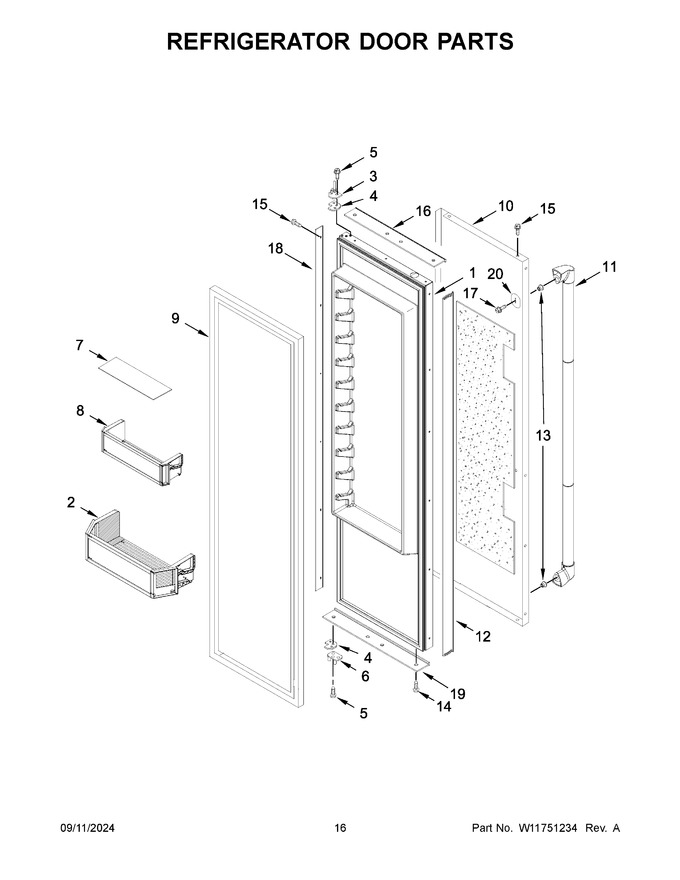

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797637		Door, Refrigerator   (Replaces: W10783291)				$ 884.49
2	W11450421		Bin, Gallon Door			Immediately	$ 418.92
3	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11454936		Mat, Door Bin (shallow)   (Replaces: W11454934)		Appelez-nous	-
8	W11450407		Bin, Shallow Door			Immediately	$ 410.93
9	W10800810		Gasket, Door (black)   (Replaces: W10776012)			Immediately	$ 352.36
10	W11797605		Skin, Door (stainless Filler (not Serviced-included With Skin))   (Replaces: W10756459)				$ 1,508.86
11	W11358123		Handle, Door (stainless)		Appelez-nous	-
12	W10758377		Spacer, Handle Side Door				$ 109.79
13	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 12.80
14	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
15	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
16	W10766560		Spacer, Door (top)		Appelez-nous	-
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
19	W10766561		Spacer, Door (bottom)		Appelez-nous	-
20	W10127710		Plate, Handle Door			Immediately	$ 25.94
7A	W11454936		Mat, Door Bin (gallon)   (Replaces: W11454932)		Appelez-nous	-
