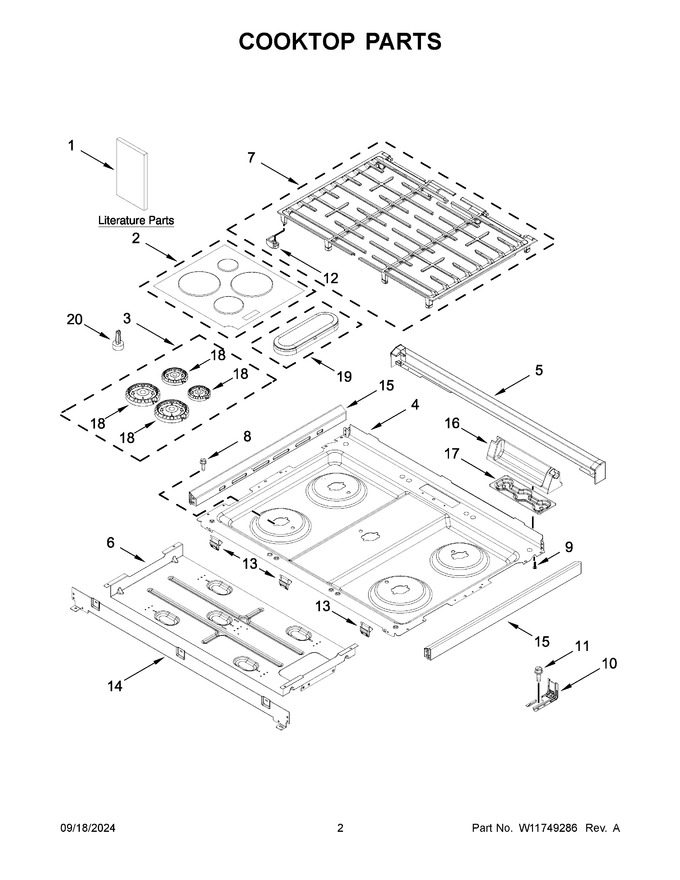

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11642290 | Owner's Manual |
|
- | |||||
| 2 | W11605759 | Burner Cap Kit (black (set Of 4)) (Replaces: W11498499) |
|
Immediately | $ 75.35 | ||||
| 3 | W11671543 | Burner Kit (set Of 4) (Replaces: W11600788) |
|
$ 129.17 | |||||
| 4 | W11730418 | Cooktop (black) (Replaces: W11279795) |
|
$ 374.35 | |||||
| 5 | W11747659 | Vent, Trim (Replaces: W11632438) |
|
$ 202.83 | |||||
| 6 | W11758685 | Box, Burner (Replaces: W11388381) |
|
$ 341.19 | |||||
| 7 | W11728633 | Grate Kit (black (set Of 2)) (Replaces: W11622335) |
|
$ 347.75 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | W10530626 | Screw |
|
$ 16.76 | |||||
| 10 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W11729100 | Grate, Bumper (Replaces: W11672010) |
|
$ 13.71 | |||||
| 13 | W11728827 | Spring, Clip (Replaces: W11637551) |
|
- | |||||
| 14 | W11750421 | Cooktop, Front Bracket (Replaces: W11295628) |
|
- | |||||
| 15 | W11729931 | Frame, Cooktop (black) (Replaces: W11367962) |
|
$ 171.56 | |||||
| 16 | W11728632 | Hinge, Grate (black) (Replaces: W11621636) |
|
$ 112.94 | |||||
| 17 | W11729925 | Hinge, Spacer (Replaces: W11623712) |
|
Immediately | $ 16.94 | ||||
| 18 | W11531096 | Flame Spreader (left Front And Right Front) (Replaces: W11352193) |
|
$ 81.92 | |||||
| 19 | W11729926 | Oval Flame Spreader Kit (center) (Replaces: W11635774) |
|
$ 180.88 | |||||
| 20 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 18A | W11531097 | Flame Spreader (left Rear) (Replaces: W11352195) |
|
$ 81.15 | |||||
| 18B | W11531098 | Flame Spreader (right Rear) (Replaces: W11352197) |
|
$ 80.72 | |||||
| 1A | W11639174 | Tech Sheet |
|
- | |||||
| 1B | W11641991 | Quick Start Guide |
|
- | |||||
| NI | W11747651 | Harness, Main (Replaces: W11334464) |
|
- | |||||
| NI | W11747426 | Harness, Dc (Replaces: W11349007) |
|
$ 167.53 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11730272 | Harness, Bake (Replaces: W11454086) |
|
Immediately | $ 59.10 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- |
