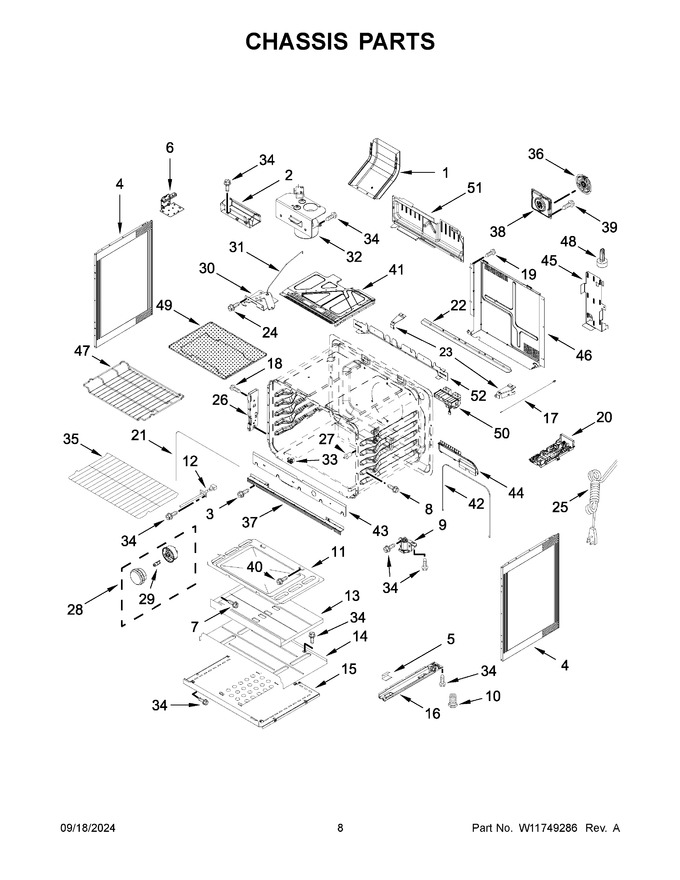

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11747642		Box, Flue   (Replaces: W11366116)		Appelez-nous	-
2	W11730237		Shield, Flue   (Replaces: W11279866)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 178.50
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	W11727012		Bracket, Cooktop Console   (Replaces: W11287215)		Appelez-nous	-
7	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
11	W11730226		Bottom, Oven   (Replaces: W11602073)				$ 231.05
12	W11730224		Sensor   (Replaces: W11633068)			Immediately	$ 48.92
13	8053967		Baffle, Burner Oven				$ 315.96
14	8053969		Shield, Heat				$ 113.04
15	W11730232		Shield, Lower   (Replaces: W11640074)		Appelez-nous	-
16	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
17	9757239		Rod, Door Switch				$ 96.37
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
19	W11684512		Screw   (Replaces: 3400080)				$ 14.81
20	W11758686		Control, Electronic   (Replaces: W11734476)				$ 370.49
21	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 50.20
22	W10435470		Brace, Main Back				$ 81.74
23	W11747357		Corner, Brace (left)   (Replaces: W11673746)				$ 26.54
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11730265		Cord, Power   (Replaces: W11661976)				$ 84.65
26	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
27	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 46.31
28	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
30	W11747356		Front Door Latch Assembly   (Replaces: W11612000)				$ 309.67
31	W11747340		Rod, Latch   (Replaces: W11616635)				$ 72.58
32	W11747339		Rear Door Latch Assembly   (Replaces: W11612001)				$ 188.01
33	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 19.30
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
35	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 57.99
36	W11730307		Fan, Convection   (Replaces: W11635909)				$ 243.51
37	W11464547		Bracket, Front Frame				$ 45.89
38	W11730217		Cover, Conv Fan   (Replaces: W11373155)		Appelez-nous	-
39	W10516115		Screw				$ 14.52
40	W10379120		Screw		Appelez-nous	-
41	W11747784		Ventilation Assembly, Duct And Frame   (Replaces: W11617265)		Appelez-nous	-
42	4820F01559		Insulation, Strap		Appelez-nous	-
43	W11747644		Deflector, Bracket   (Replaces: W11619830)		Appelez-nous	-
44	W11747597		Rear, Duct Assembly   (Replaces: W11637749)		Appelez-nous	-
45	W11729919		Bracket, Acu   (Replaces: W11365827)				$ 77.10
46	W11747649		Side, Cover   (Replaces: W11633165)				$ 133.94
47	W11730235		Rack, Oven (gull-wing)   (Replaces: W11607819)			Immediately	$ 108.09
48	8016P02260		Glide, Main Top		Appelez-nous	-
49	W11692811		Accessory Parts, Basket, Airfry   (Replaces: W11661815)			Immediately	$ 117.69
50	W11747639		Dual, Blower   (Replaces: W11616407)				$ 331.58
51	W11747640		Convection, Rear Cover   (Replaces: W11361778)				$ 69.75
52	W11758684		Deflector, Panel   (Replaces: W11615396)		Appelez-nous	-
16A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
23A	W11747358		Corner, Brace (right)   (Replaces: W11673745)				$ 26.54
NI	W11747643		Insulation, Back   (Replaces: W11632432)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 116.41
