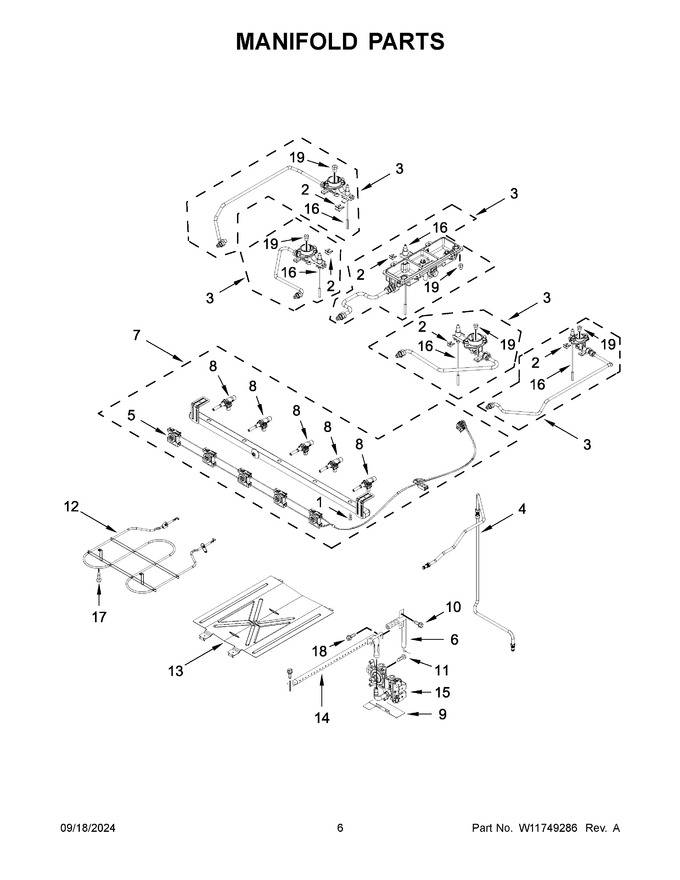

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11747654		Orifice Holder Assembly (18k) (left Front)   (Replaces: W11300893)		Appelez-nous	-
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 143.34
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11747657		Manifold   (Replaces: W11279817)				$ 304.02
8	W11728580		Valve, Single (right Front And Center)   (Replaces: W11279839)			Immediately	$ 94.28
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)			Immediately	$ 393.66
16	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
19	W10849722		Orifice (18k) (left Front, Right Front And Center)		Appelez-nous	-
16A	W11453920		Electrode (right Front, Right Rear)   (Replaces: W11428858)				$ 64.35
16B	W11745758		Electrode (center)   (Replaces: W11581944)		Appelez-nous	-
19A	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 99.15
19B	W10907868		Orifice (10k) (left Rear)				$ 90.69
19C	W11728583		Orifice (12k) (center)   (Replaces: W11642835)		Appelez-nous	-
3A	W11747658		Orifice Holder Assembly (10k) (left Rear)   (Replaces: W11300868)		Appelez-nous	-
3B	W11747656		Orifice Holder Assembly (18k) (right Front)   (Replaces: W11300884)				$ 76.34
3C	W11747653		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11300872)			Immediately	$ 76.88
3D	W11747655		Orifice Holder Assembly (12k) (center)   (Replaces: W11634400)				$ 205.22
8A	W11728579		Valve, Single (left Rear)   (Replaces: W11279838)		Appelez-nous	-
8B	W11728578		Valve, Single (right Rear)   (Replaces: W11279837)		Appelez-nous	-
8C	W11727167		Valve, Single (center)   (Replaces: W11629949)		Appelez-nous	-
NI	WPW10182767		Tie, Wire   (Replaces: W11402210)				$ 7.30
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730236		Lp Conversion Kit   (Replaces: W11370714)				$ 50.36
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
