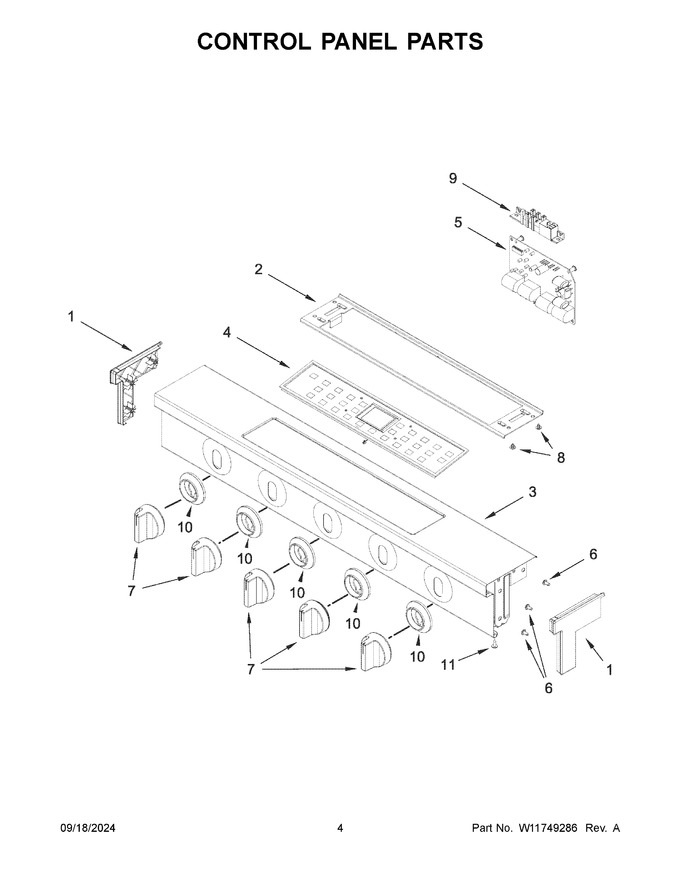

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747591 | Endcap (black, (left)) (Replaces: W11357955) |
|
$ 69.72 | |||||
| 2 | W11747359 | Mounting, Bracket (Replaces: W11291721) |
|
- | |||||
| 3 | W11747650 | Panel, Control (black Stainless) (Replaces: W11300036) |
|
$ 454.11 | |||||
| 4 | W11839351 | User Interface Assembly (Replaces: W11333941) |
|
$ 611.04 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 7 | W11730230 | Knob, Control (black Stainless) (Replaces: W11632049) |
|
- | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11730210 | Bezel (black Stainless) (Replaces: W11632249) |
|
- | |||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 1A | W11747592 | Endcap (black, (right)) (Replaces: W11357956) |
|
$ 69.72 |
