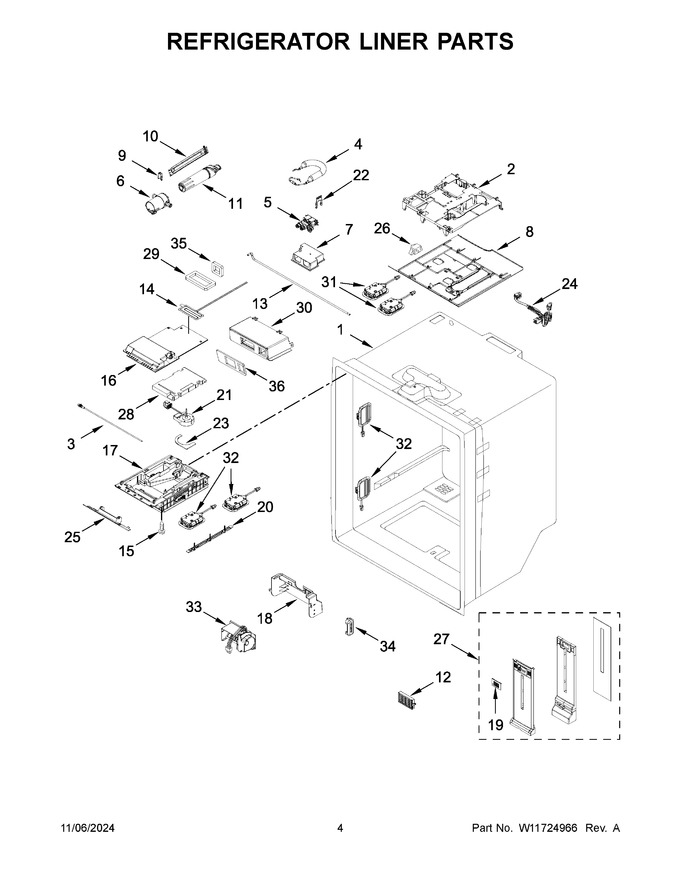

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11482035 | Housing, Water System (Replaces: W11281629) |
|
$ 103.37 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W11613057) |
|
Immediately | $ 118.24 | ||||
| 4 | W11482382 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W11296598) |
|
Immediately | $ 154.12 | ||||
| 5 | W11803379 | Valve, Dual Water (Replaces: W11255718) |
|
Immediately | $ 172.38 | ||||
| 6 | W11482384 | Housing, Water Filter (Replaces: W11293954) |
|
Immediately | $ 108.97 | ||||
| 7 | W11391457 | Enclosure, Water Valve |
|
$ 54.77 | |||||
| 8 | W10754145 | Cover, Waterbox |
|
Immediately | $ 94.45 | ||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | W10754143 | Door, Filter Access |
|
$ 115.82 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W11658811) |
|
$ 88.45 | |||||
| 14 | W11087201 | Heater, Fill Tube (Replaces: W10706850) |
|
Immediately | $ 83.21 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 157.86 | ||||
| 17 | W11605505 | Assembly, Icebox (foamed) (Replaces: W11547437) |
|
$ 320.10 | |||||
| 18 | W11124841 | Cover, Air Damper |
|
- | |||||
| 19 | W11682236 | Cover, Air Diffuser (Replaces: W11375055) |
|
- | |||||
| 20 | W10785113 | Trim, Icebox |
|
- | |||||
| 21 | W10846539 | Fan, Icebox (Replaces: W10833801) |
|
Immediately | $ 181.73 | ||||
| 22 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 23 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 24 | W11369503 | Wire Assembly, Jumper |
|
$ 72.29 | |||||
| 25 | W11741469 | Assembly, Fascia (includes Heater) (Replaces: W11504347) |
|
$ 169.72 | |||||
| 26 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 27 | W11790741 | Assembly, Air Tower (Replaces: W11373136) |
|
Immediately | $ 441.95 | ||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 30 | W11126056 | Assembly, Icebox Adapter (Replaces: W10749701) |
|
Immediately | $ 116.90 | ||||
| 31 | W11484839 | Harness, Led Wire (includes Led Lights) (Replaces: W11234022) |
|
Immediately | $ 186.29 | ||||
| 32 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 33 | WPW10479155 | Damper, Control (Replaces: W10479155) |
|
Immediately | $ 107.95 | ||||
| 34 | W11238397 | Cover, Thermistor (Replaces: W10438957) |
|
Immediately | $ 23.33 | ||||
| 35 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 36 | W11747986 | Gasket, Adapter (Replaces: W11672619) |
|
- | |||||
| NI | W11483123 | Harness, Dual Valve (Replaces: W11306925) |
|
- | |||||
| NI | W11298842 | Wire Assembly, Ice Box |
|
Immediately | $ 137.06 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
