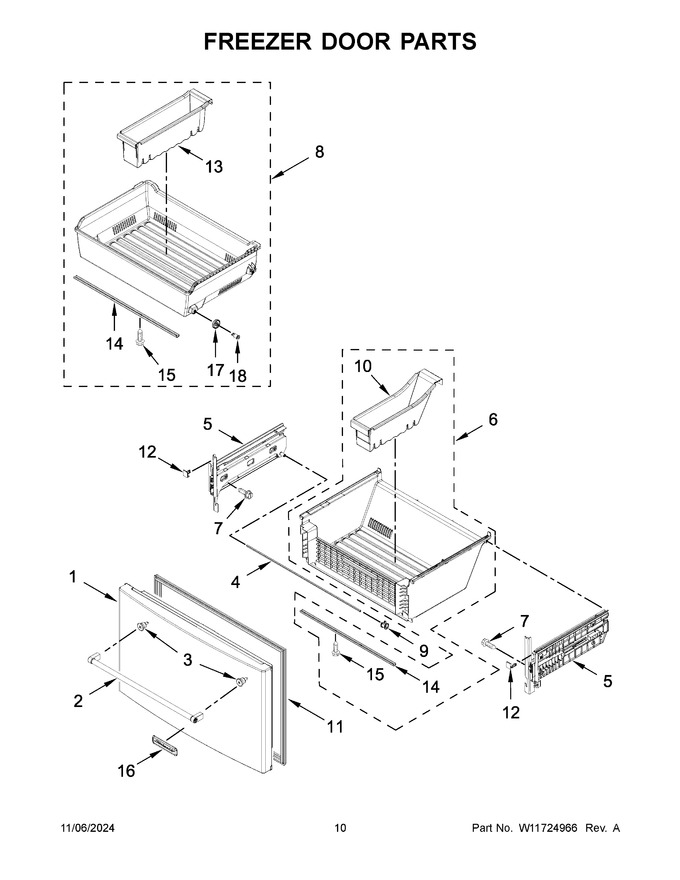

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11681452		Door, Freezer (includes Door Gasket) (black Stainless)   (Replaces: W11733743)				$ 923.46
2	W11499276		Handle, Door (stainless)   (Replaces: W11222205)				$ 144.07
3	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668672		Assembly, Bracket (left Hand)   (Replaces: W10795771)			Immediately	$ 469.92
6	W10594052		Bin, Lower			Immediately	$ 271.25
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W11379101		Assembly, Upper Bin		Appelez-nous	-
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 11.39
10	W10562492		Divider, Lower				$ 108.21
11	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 317.99
12	W10585151		Stop, Pan (left Hand)				$ 86.03
13	W11681081		Divider, Upper   (Replaces: W11379103)		Appelez-nous	-
14	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
15	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
16	W10876598		Nameplate (grey)   (Replaces: W10765861)			Immediately	$ 72.82
17	W11578839		Roller, Pan   (Replaces: W10248555)				$ 14.96
18	W11573594		Axle, Roller   (Replaces: W10643690)				$ 19.14
12A	W10585150		Stop, Pan (right Hand)				$ 86.09
5A	W11668672		Assembly, Bracket (right Hand)   (Replaces: W10795769)			Immediately	$ 469.92

    View Diagram in Separate Window       Print Part List
