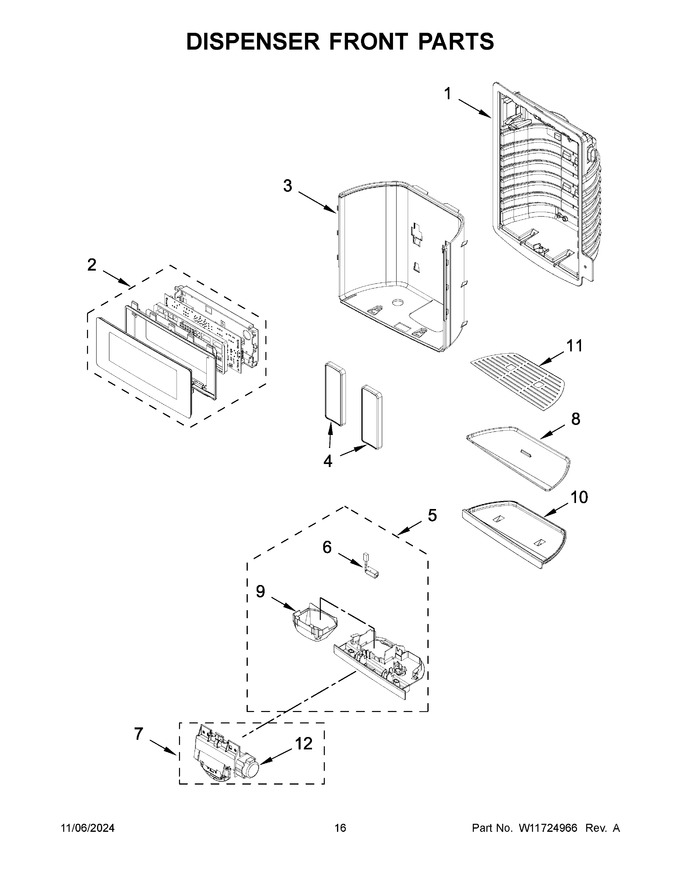

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI0820F7799426DB23CC858392159B72FE		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11758777		Assembly, User Interface (black)   (Replaces: W11724452)				$ 281.07
3	W10486344		Wall, Dispenser False (black)				$ 134.00
4	W11561037		Assembly, Pad (black)   (Replaces: W10317253)				$ 82.93
5	W10836794		Assembly, Separator   (Replaces: W10394101)				$ 192.69
6	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
7	WPW10606117		Assembly, Ice Door   (Replaces: W10606117)				$ 192.28
8	W10400889		Insert, Drip Tray (black)				$ 50.01
9	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
10	W10400884		Tray, Dispenser (black)				$ 69.16
11	WPW10542708		Grate, Drip Tray   (Replaces: W10542708)				$ 79.54
12	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60

    View Diagram in Separate Window       Print Part List
